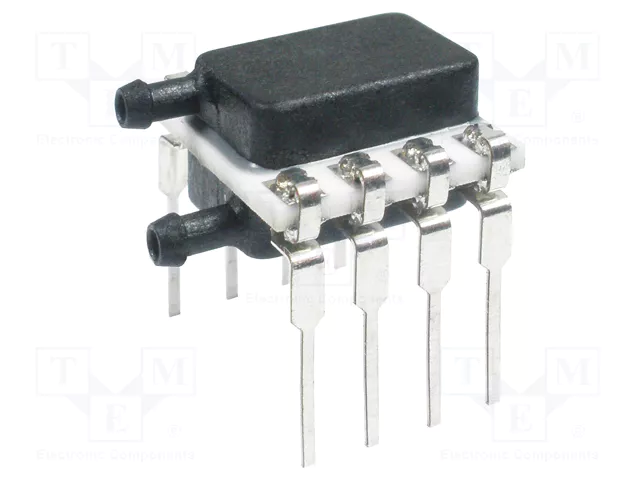

Specification	SSCDRRT250MDAA5

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	20.31 PSI
Mounting Type	Through Hole
Operating Pressure	3.63 PSI
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Type	Analog Voltage
Output Voltage (Max)	4.5 V
Output Voltage (Min)	0.5 V
Package Features	Dual Ports, Same Side
Package Length	0.524 in
Package Name	8-DIP
Package Width	13.3 mm
Port Diameter	0.08 in
Port Feature	Dual, Tube
Port Gender	Male
Port Style	Barbed
Pressure Type	Differential
Termination Style	PC Pin
Voltage - Supply (Maximum)	5.25 V
Voltage - Supply (Minimum)	4.75 V

trustability Series

...

Part	Features	Termination Style	Output Voltage (Min)	Output Voltage (Max)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Pressure	Pressure Type	Maximum Pressure	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Mounting Type	Output Type	Accuracy	Package Name	Port Diameter	Port Gender	Port Feature	Port Style	Package Length	Package Features	Package Width	Package / Case	Output Bits
Honeywell Sensing and Productivity Solutions SSCDRRN100MGAA5	Amplified Output Temperature Compensated	PC Pin	0.5 V	4.5 V	5.25 V	4.75 V	1.45 PSI	Vented Gauge	12.33 PSI	-40 °C	85 °C	Board Mount	Through Hole	Analog Voltage	0.25 %	8-DIP	0.08 in	Male	Dual Tube	Barbed	0.524 in	Dual Ports Same Side	13.3 mm
Honeywell Sensing and Productivity Solutions SSCMRRN001PDAA3	Amplified Output Temperature Compensated	SMD (SMT) Tab	0.33 V	2.97 V	3.6 V	3 V	1 PSI	Differential	10 PSI	-40 °C	85 °C	Board Mount	Surface Mount	Analog Voltage	0.25 %	8-SMT	0.08 in	Male	Dual Tube	Barbed				8-SMD Dual Ports J-Lead Same Side
Honeywell Sensing and Productivity Solutions SSCMRRN001ND2A3	Amplified Output Temperature Compensated	SMD (SMT) Tab			3.33 V	3.27 V	0.04 PSI	Differential	9.76 PSI	-40 °C	85 °C	Board Mount	Surface Mount	I2C	0.25 %	8-SMT	0.08 in	Male	Dual Tube	Barbed				8-SMD Dual Ports J-Lead Same Side	12 b
Honeywell Sensing and Productivity Solutions SSCSSNN001PGAA5	Amplified Output Temperature Compensated	PC Pin	0.5 V	4.5 V	5.25 V	4.75 V	1 PSI	Vented Gauge	10 PSI	-40 °C	85 °C	Board Mount	Through Hole	Analog Voltage	0.25 %	4-SIP				No Port				4-SIP Module
Honeywell Sensing and Productivity Solutions SSCMRRN005PDAA3	Amplified Output Temperature Compensated	SMD (SMT) Tab	0.33 V	2.97 V	3.6 V	3 V	5 PSI	Differential	30 PSI	-40 °C	85 °C	Board Mount	Surface Mount	Analog Voltage	0.25 %	8-SMT	0.08 in	Male	Dual Tube	Barbed				8-SMD Dual Ports J-Lead Same Side
Honeywell Sensing and Productivity Solutions SSCMRRV015PD2A3	Amplified Output Temperature Compensated				3.6 V	3 V	15 PSI	Differential	60 PSI	-40 °C	85 °C	Industrial Automation Medical Ventilation	Surface Mount	I2C	0.25 %	8-SMD	0.08 in	Male	Dual Tube	Barbed				8-SMD Dual Ports J-Lead Same Side	12 b
Honeywell Sensing and Productivity Solutions SSCMANN060PG2A3
Honeywell Sensing and Productivity Solutions SSCSANT100PGAB3	Amplified Output Temperature Compensated	PC Pin	0.165 V	3.135 V	3.6 V	3 V	100 PSI	Vented Gauge	250 PSI	-40 °C	85 °C	Board Mount	Through Hole	Analog Voltage	0.25 %	4-SIP	0.19 "	Male	Tube	Barbed				4-SIP Side Port
Honeywell Sensing and Productivity Solutions SSCDDRD015PDAA5	Amplified Output Temperature Compensated	PC Pin	0.5 V	4.5 V	5.25 V	4.75 V	15 PSI	Differential	60 PSI	-40 °C	85 °C	Board Mount	Through Hole	Analog Voltage	0.25 %	8-DIP	0.08 in	Male	Dual Tube	Barbed	0.524 in	Dual Ports Opposite Sides	13.3 mm
Honeywell Sensing and Productivity Solutions SSCDJNN002ND2A3
