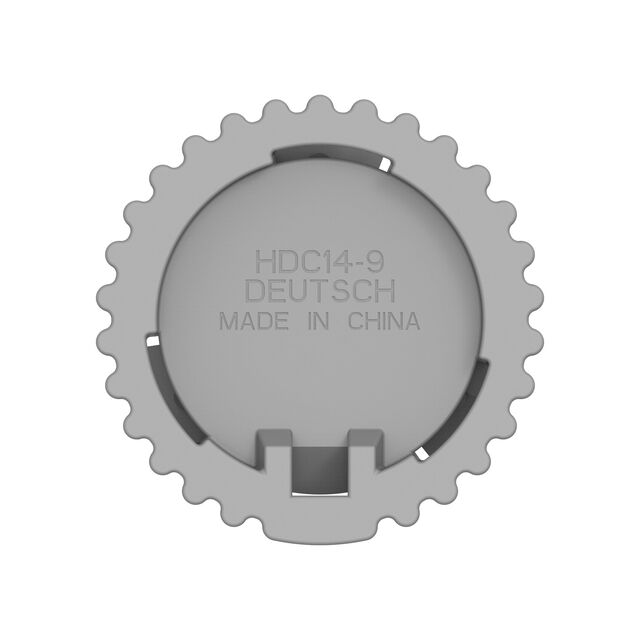

Specification	HDC14-9

Accessory Type	Protective, Cap (Cover)
Color	Gray
For Use With/Related Products	HD10 Series Plug
Material	Glass Filled, Polyamide (PA), Nylon
Shell Size - Insert	9
Shell Size - Insert	9

DEUTSCH HD10 Series

Part	Primary Material	Shielding	Cable Opening (Min)	Cable Opening (Max)	Cable Exit Angle	Material	Shell Size - Insert	Shell Size - Insert	Color	Ingress Protection Description	Ingress Protection IP Rating	Diameter - Outside	Type	Material Flammability Rating	Number of Positions	Connector Type	Fastening Type	Orientation	Shell Material	Housing Color	Contact Type	Contact Size	Mounting Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Ingress Protection	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Contact Shape	Note	Includes Total Count	Includes	For Use With/Related Products	Cable Opening	Features	Thread Size (Class)	Thread Pitch (TPI)	Thread Size (Nominal)	Accessory Type
TE Connectivity AMP Connectors HD10-9-96P
TE Connectivity AMP Connectors M902-2191	Plastic	Unshielded	0.187 in	0.3 in	180 °	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	9	9	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	1.54 in	Backshell

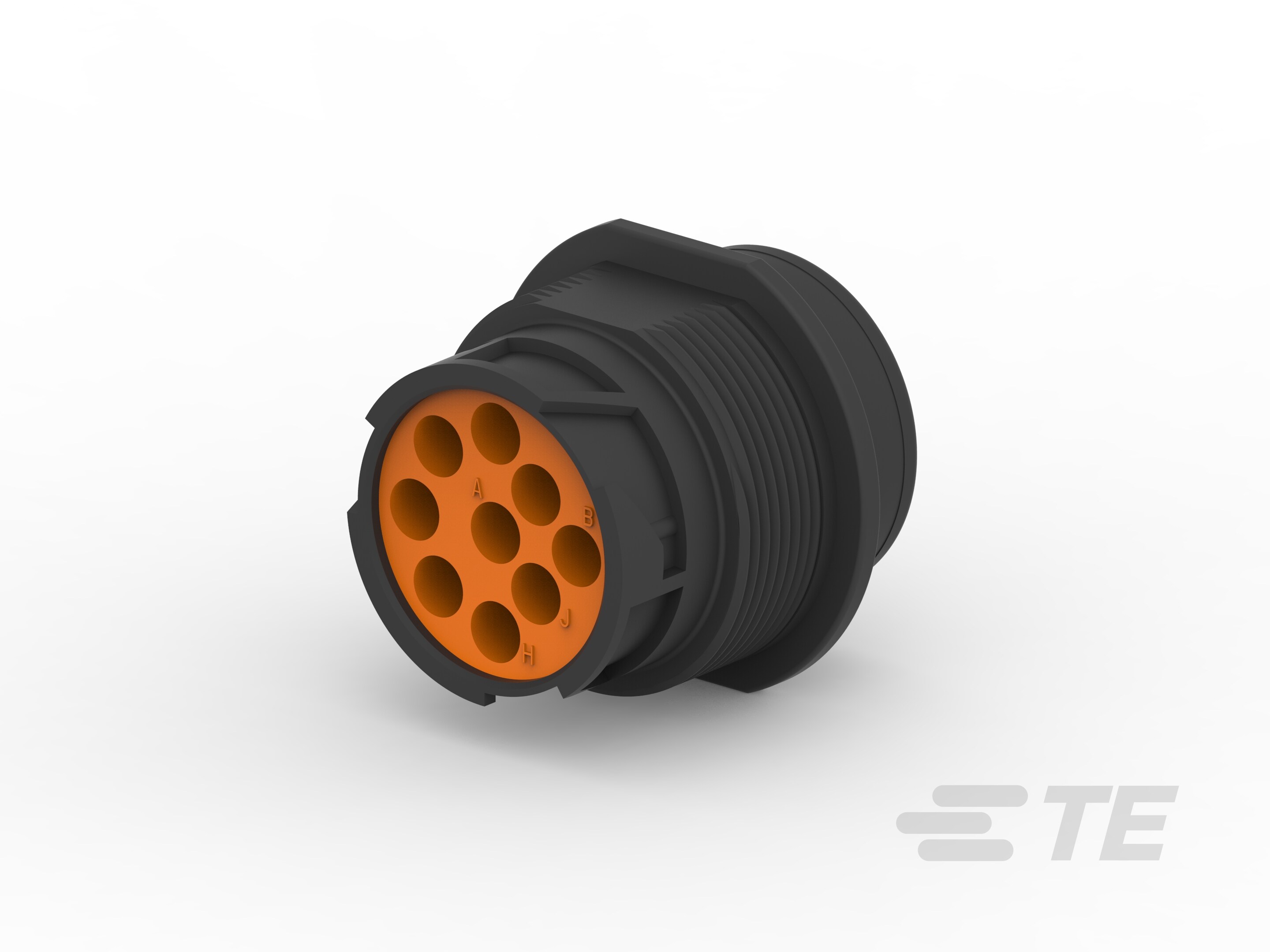

TE Connectivity AMP Connectors HD10-9-96PE-BE09
TE Connectivity AMP Connectors HDC16-6
TE Connectivity AMP Connectors M902-2132	Plastic	Unshielded	0.3 in	0.43 in	180 °	Polybutylene Terephthalate (PBT) Polycarbonate (PC)		3	Black			1.196 in	Backshell
TE Connectivity AMP Connectors HD14-5-16P	Plastic	Unshielded											For Male Pins	UL94 V-0	5	Receptacle Housing	Bayonet Lock	Keyed	Glass Filled Nylon Polyamide (PA)	Gray	Crimp	16	Free Hanging (In-Line)	16	5	IP68 IP6K9K	125 °C	-55 °C	Glass Filled Nylon PA Polyamide	Circular	Contacts Not Included
TE Connectivity AMP Connectors HD16-6-12S
TE Connectivity AMP Connectors HD18-009		Unshielded			180 °	Plastic	9	9	Gray			1.625 in	Backshell																			1 pcs	Backshell	HD10 Rear Threaded Connector	1.57 in	Tie Wrap Holder	UNEF-2B	18 TPI	1.375 in
TE Connectivity AMP Connectors HDC16-5						Plastic	5	5	Gray																									HD10 Series Receptacle						Cap (Cover) Protective
TE Connectivity AMP Connectors HD10-9-1939P
