TCT3-12E07AE
ActiveTriad Magnetics

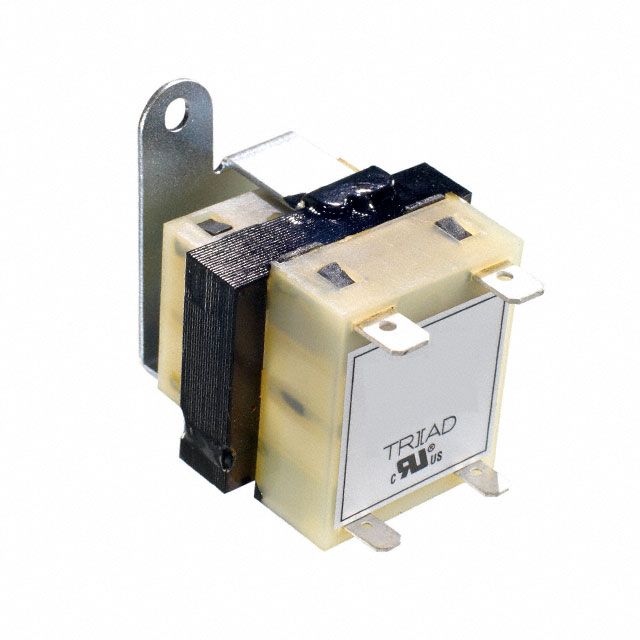

CHASSIS MOUNT TRANSFORMER, CLASS 2, CLASS 2 ENERGY LIMITING, 240V, 10V, 2.5 VA, 50HZ / 60HZ
TCT3-12E07AE
ActiveTriad Magnetics
CHASSIS MOUNT TRANSFORMER, CLASS 2, CLASS 2 ENERGY LIMITING, 240V, 10V, 2.5 VA, 50HZ / 60HZ
Description
General part information
TCT3-12E07AE
CHASSIS MOUNT TRANSFORMER, CLASS 2, CLASS 2 ENERGY LIMITING, 240V, 10V, 2.5 VA, 50HZ / 60HZ
Technical Specifications
Parameters and characteristics for this part
| Specification | TCT3-12E07AE |
|---|---|
| Center Tap | No |
| Current - Output (Max) | 250 mA |
| Height - Seated (Max) | 54.1 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 2.5 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 60 mm |
| Size / Dimension Width | 42.5 mm |
| Termination Style | Solder, Quick Connect |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 240 V |
| Voltage - Secondary (Full Load) | 10 V |
| Weight | 0.5 lbs |
