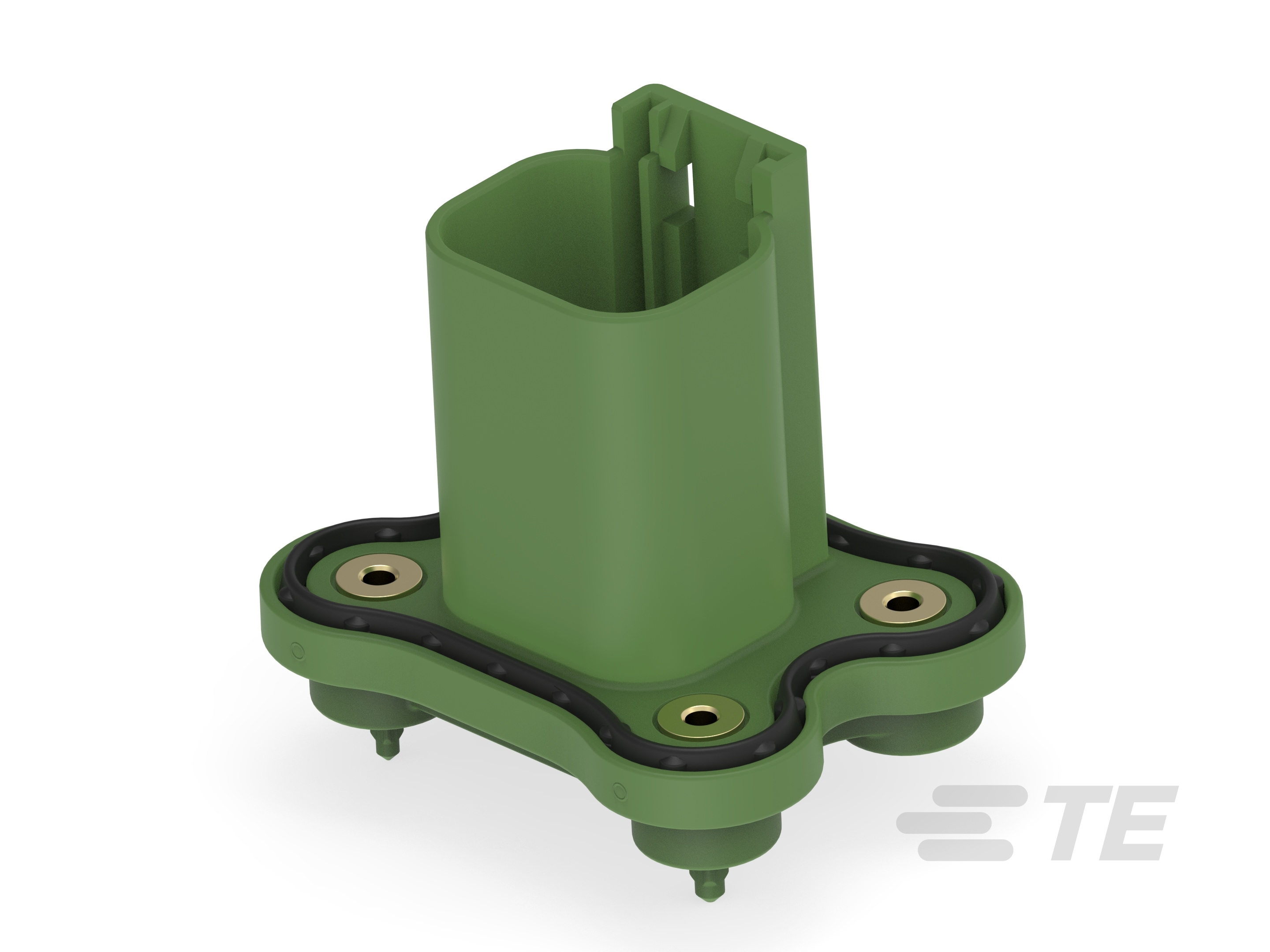

2POS,PIN CSS SIZE 20,HDR ASSY,180DEG-9-2367359-3

9-2367359-3

Active
TE Connectivity AMP Connectors

2POS,PIN CSS SIZE 20,HDR ASSY,180DEG

Find alt
2POS,PIN CSS SIZE 20,HDR ASSY,180DEG-9-2367359-3

9-2367359-3

Active
TE Connectivity AMP Connectors

2POS,PIN CSS SIZE 20,HDR ASSY,180DEG

Find alt

Description

General part information

9-2367359-3

Vertical, Cable-to-Board, 2 Position, 1 Rows, 4mm [.15in] Centerline, Gold (Au), Sealable, Printed Circuit Board, 7.5A Contact Current Rating (Max)

Technical Specifications

Parameters and characteristics for this part

Specification9-2367359-3
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact MaterialBrass
Contact ShapeCircular
Contact TypeMale Pin
Current Rating7.5 A
Fastening TypePush-Pull
FeaturesMounting Flange
Insulation ColorGreen
Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypePanel Mount, Through Hole
Number of Positions2
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Pitch - Mating0.157 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationSolder
Voltage Rating60 V
