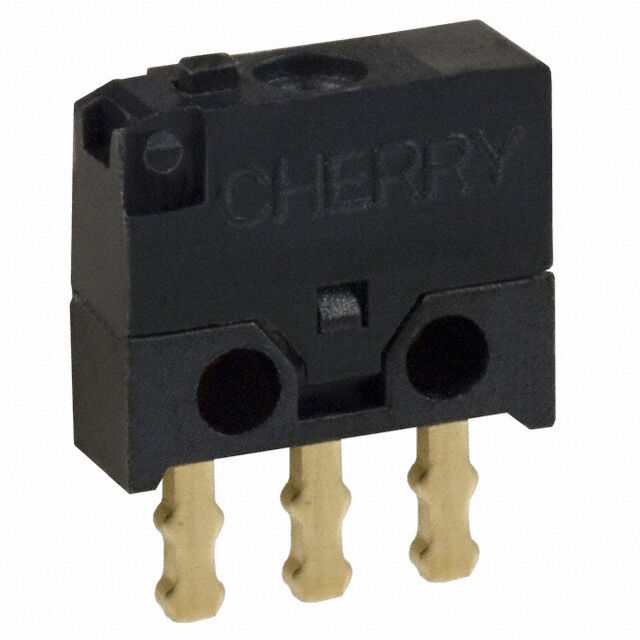

DH4C-B1AA
ObsoleteZF Electronics
SWITCH SNAP ACT SPDT 0.05A 30V
DH4C-B1AA
ObsoleteZF Electronics
SWITCH SNAP ACT SPDT 0.05A 30V
Description
General part information
DH4C-B1AA
Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | DH4C-B1AA |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating | 50 mA |
| Differential Travel (Linear) | 0.003 in |
| Mounting Type | Chassis Mount |
| Operating Force | 90 gf |
| Operating Position (Length) | 0.22 in |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Overtravel (Linear) | 0.004 in |
| Pretravel (Length) | 0.008 in |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - DC | 30 V |
