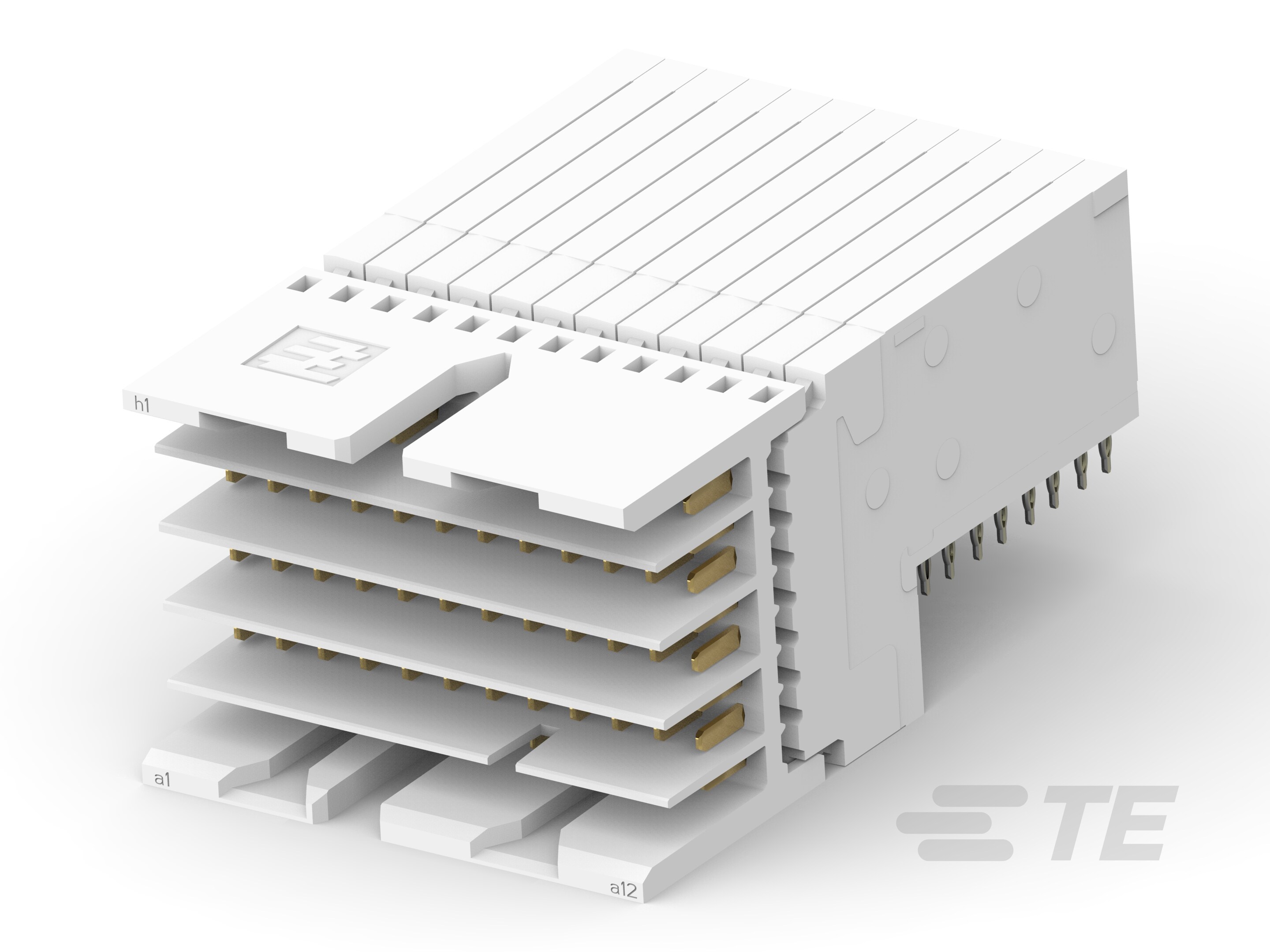

Right Angle Male Connector-2042162-1

2042162-1

Active
TE Connectivity AMP Connectors

CONN HEADER 96POS EDGE MNT

Find alt
Right Angle Male Connector-2042162-1

2042162-1

Active
TE Connectivity AMP Connectors

CONN HEADER 96POS EDGE MNT

Find alt

Description

General part information

Z-PACK Slim UHD Series

96 Position High Speed Backplane Connector, 8 Row, 12 Column, PCB Mount Header, Right Angle, Unshrouded, 1.45 mm [.057 in] Centerline, Z-PACK Slim UHD

Technical Specifications

Parameters and characteristics for this part

Specification2042162-1
ColorNatural
Connector TypeHeader, Male Pins
Mounting TypeRight Angle, Through Hole, Board Edge
Number of Columns12
Number of Positions96
Number of Positions LoadedAll
Number of Rows8
TerminationPress-Fit
