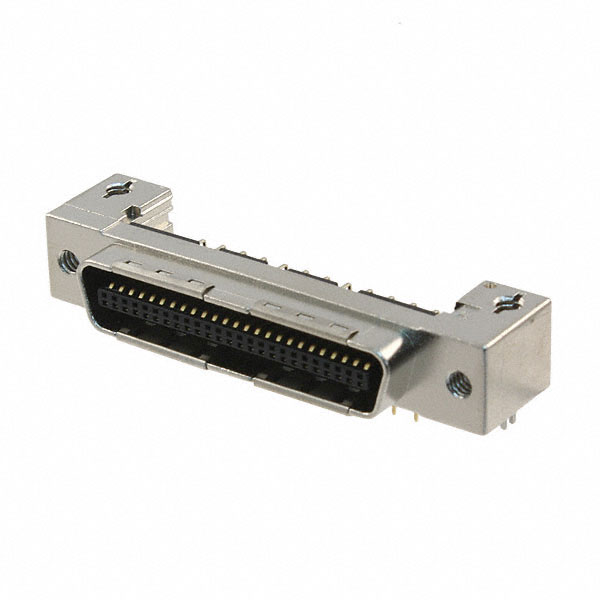

Specification	10150-52E2PC

Connector Style	Center Strip Contacts
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Shielded, Board Lock
Flange Feature	Shell (4-40), Housing
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	50
Number of Rows	2
Termination	Solder

10150 Series

Part	Mounting Type	Connector Style	Connector Type	Features	Contact Finish	Termination	Number of Positions	Contact Finish Thickness	Number of Rows	Flange Feature
3M Electronic Specialty 10150-9000JL	Board Edge Straddle Mount	Center Strip Contacts	Plug	Shielded	Gold	Solder	50	8 µin	2
3M Electronic Specialty 10150-5212PC	Panel Mount Right Angle Through Hole	Center Strip Contacts	Plug	Shielded	Gold	Solder	50	30 µin	2	Housing Shell (M2.6)
3M Electronic Specialty 10150-52E2VC	Panel Mount Right Angle Through Hole	Center Strip Contacts	Plug	Board Lock Shielded	Gold	Solder	50	30 µin	2	Housing Shell (4-40)
3M Electronic Specialty 10150-90AAPC	Board Edge Straddle Mount	Center Strip Contacts	Plug	Shielded	Gold	Solder	50	30 µin	2
3M Electronic Specialty 10150-6000EC	Free Hanging (In-Line)	Center Strip Contacts	Plug	Shielded	Gold	IDC	50	30 µin	2
3M Electronic Specialty 10150-3000VC	Free Hanging (In-Line)	Center Strip Contacts	Plug	Shielded	Gold	Solder Cup	50	30 µin	2
3M Electronic Specialty 10150-3000VE	Free Hanging (In-Line)	Center Strip Contacts	Plug	Shielded	Gold	Solder Cup	50	20 µin	2
3M Electronic Specialty 10150-3000PE	Free Hanging (In-Line)	Center Strip Contacts	Plug	Shielded	Gold	Solder Cup	50	20 µin	2
3M Electronic Specialty 10150-7242PC	Panel Mount Right Angle Through Hole	Center Strip Contacts	Plug	Board Lock Shielded	Gold	Solder	50	30 µin	2	Housing Shell (4-40)
3M Electronic Specialty 10150-7242VC	Panel Mount Right Angle Through Hole	Center Strip Contacts	Plug	Board Lock Shielded	Gold	Solder	50	30 µin	2	Housing Shell (4-40)
