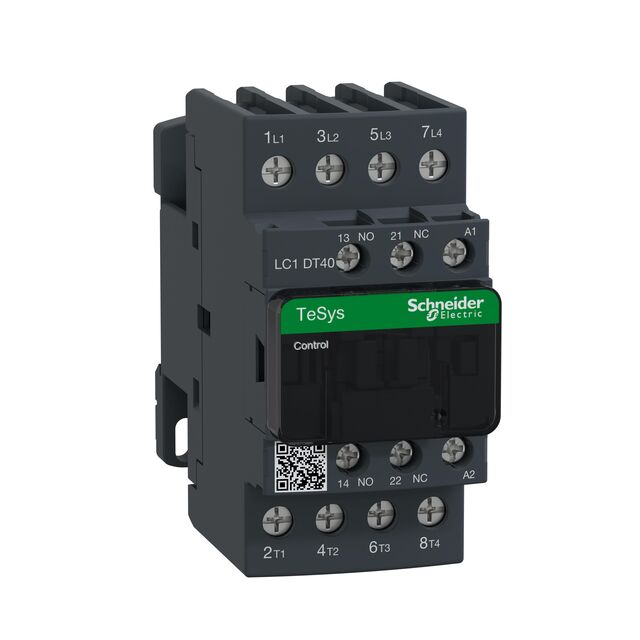

LC1DT40P7
ActiveSCHNEIDER ELECTRIC
TESYS CONTACTOR 4P AC1 440V 40 A
LC1DT40P7
ActiveSCHNEIDER ELECTRIC
TESYS CONTACTOR 4P AC1 440V 40 A
Description
General part information
LC1DT40P7
TESYS CONTACTOR 4P AC1 440V 40 A
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1DT40P7 |
|---|---|
| Coil Voltage | 230 VDC |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 40 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 195.5 VDC |
| Must Release Voltage | 69 VAC |
| Operate Time | 22 ms |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 19 ms |
| Switching Voltage (Nominal) | 440 VAC |
| Termination Style | Screw Terminal |
