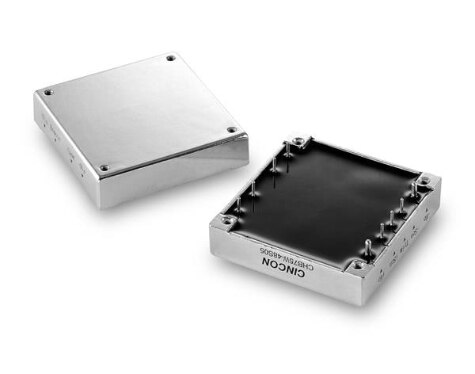

Specification	CHB75W-24S48N

Applications	ITE (Commercial)
Approval Agency	cURus, CE
Control Features	Enable, Active Low
Current - Output (Max)	1.56 A
Efficiency	82 %
Features	OCP, Remote On/Off, OTP, UVLO, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Package / Case	Half Brick
Package Name	Half Brick
Power (Watts)	75 W
Size / Dimension Height	0.5 in
Size / Dimension Length	2.4 in
Size / Dimension Width	2.28 in
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	9 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	48 V

CHB75W Series

Part	Efficiency	Number of Outputs	Current - Output (Max)	Approval Agency	Input Type	Voltage - Output 1	Power (Watts)	Features	DC Voltage - Input (Max)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	DC Voltage - Input (Min)	Voltage - Isolation	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Voltage - Input (Max)	Voltage - Input (Min)	Type	Package Name	Control Features	Standard Number	Mounting Type	Package / Case
Cincon Electronics Co. LTD CHB75W-24S05-DIN	82 %	1	15 A	CE cURus	DC	5 V	75 W	Adjustable Output Remote On/Off Remote Sense	36 V	1.03 in	3.98 in	2.54 in	9 V	1500 Vrns	-40 °C	100 °C	ITE (Commercial)
Cincon Electronics Co. LTD CHB75W-24S48	82 %	1	1.56 A	CE cURus		48 V	75 W	OCP OTP OVP Remote On/Off SCP UVLO		0.5 in	2.4 in	2.28 in		1500 Vrns	-40 °C	100 °C	ITE (Commercial)	36 V	9 V	Isolated Module	Half Brick	Active High Enable	60950-1	Through Hole	Half Brick
Cincon Electronics Co. LTD CHB75W-24S24-DIN	84 %	1	3.12 A	CE cURus	DC	24 V	75 W	Adjustable Output Remote On/Off Remote Sense	36 V	1.03 in	3.98 in	2.54 in	9 V	1500 Vrns	-40 °C	100 °C	ITE (Commercial)
Cincon Electronics Co. LTD CHB75W-48S33-DIN	80 %	1	15 A	CE cURus	DC	3.3 V	50 W	Adjustable Output Remote On/Off Remote Sense	75 V	1.03 in	3.98 in	2.54 in	18 V	1500 Vrns	-40 °C	100 °C	ITE (Commercial)
Cincon Electronics Co. LTD CHB75W-48S48-DIN	84 %	1	1.56 A	CE cURus	DC	48 V	75 W	Adjustable Output Remote On/Off Remote Sense	75 V	1.03 in	3.98 in	2.54 in	18 V	1500 Vrns	-40 °C	100 °C	ITE (Commercial)
Cincon Electronics Co. LTD CHB75W-24S28	84 %	1	2.67 A	CE cURus		28 V	75 W	OCP OTP OVP Remote On/Off SCP UVLO		0.5 in	2.4 in	2.28 in		1500 Vrns	-40 °C	100 °C	ITE (Commercial)	36 V	9 V	Isolated Module	Half Brick	Active High Enable	60950-1	Through Hole	Half Brick
Cincon Electronics Co. LTD CHB75W-48S24-DIN	85 %	1	3.12 A	CE cURus	DC	24 V	75 W	Adjustable Output Remote On/Off Remote Sense	75 V	1.03 in	3.98 in	2.54 in	18 V	1500 Vrns	-40 °C	100 °C	ITE (Commercial)
Cincon Electronics Co. LTD CHB75W-48S12-DIN	84 %	1	6.25 A	CE cURus	DC	12 V	75 W	Adjustable Output Remote On/Off Remote Sense	75 V	1.03 in	3.98 in	2.54 in	18 V	1500 Vrns	-40 °C	100 °C	ITE (Commercial)
Cincon Electronics Co. LTD CHB75W-48S15-DIN	85 %	1	5 A	CE cURus	DC	15 V	75 W	Adjustable Output Remote On/Off Remote Sense	75 V	1.03 in	3.98 in	2.54 in	18 V	1500 Vrns	-40 °C	100 °C	ITE (Commercial)
Cincon Electronics Co. LTD CHB75W-48S12N	84 %	1	6.25 A	CE cURus		12 V	75 W	OCP OTP OVP Remote On/Off SCP UVLO		0.5 in	2.4 in	2.28 in		1500 Vrns	-40 °C	100 °C	ITE (Commercial)	75 V	18 V	Isolated Module	Half Brick	Active Low Enable	60950-1	Through Hole	Half Brick
