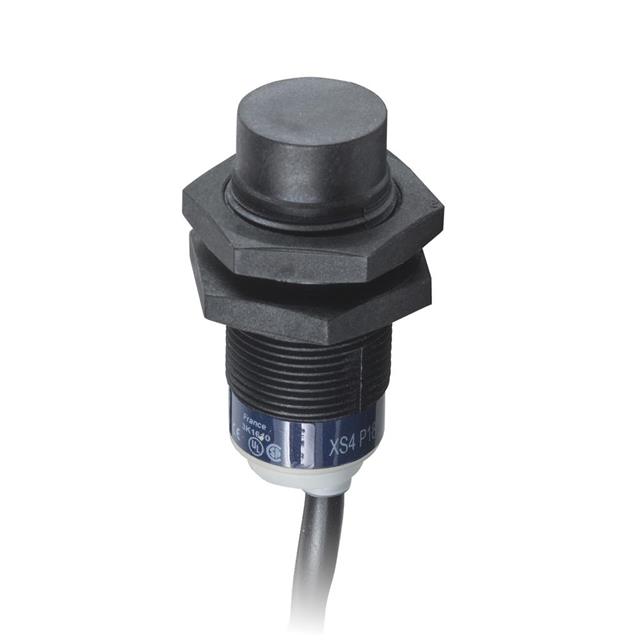

XS4P18AB120

XS4P18AB110

Active
SCHNEIDER ELECTRIC

INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M18, 8 MM, VOLTAGE, 24V TO 48V, PRE-WIRED

Find alt
XS4P18AB120

XS4P18AB110

Active
SCHNEIDER ELECTRIC

INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M18, 8 MM, VOLTAGE, 24V TO 48V, PRE-WIRED

Find alt

Description

General part information

XS4P18AB110

The XS4P18AB110 is a 3-wire Inductive Proximity Sensor with NC discrete output. Cylindrical M30 sensor. For non contact sensing of metal objects up to 60mm. PBT enclosure. IP67 conforming to IEC 60529.

Technical Specifications

Parameters and characteristics for this part

SpecificationXS4P18AB110
IndicatorNo Indicator
Ingress ProtectionIP67
Material - BodyPolybutylene Terephthalate (PBT)
Operating Temperature (Max)70 °C
Operating Temperature (Min)-25 °C
Output TypeAnalog Voltage
Package / CaseCylinder, Threaded - M18
Sensing Distance0.315 "
Sensor TypeInductive
ShieldingUnshielded
Termination StyleCable Leads
Voltage - Supply (Maximum)48 VDC
Voltage - Supply (Minimum)24 VAC
