Description

General part information

KISSLING Series 35 Series

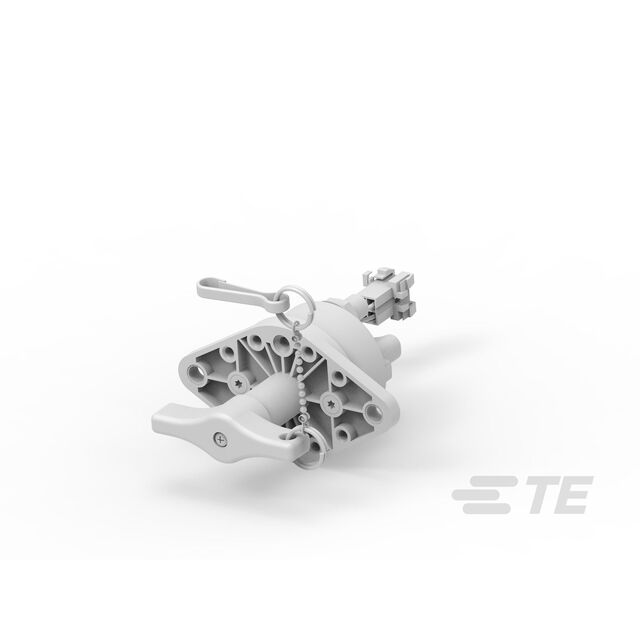

500 A Battery Disconnect Switch, 32 VDC, 1 Pole, Double Wing Handle, 1 Auxillary Positions, Long Flange, KISSLING Series 35

Technical Specifications

Parameters and characteristics for this part

Specification35-514-240-R-A5-900
CircuitSPST-NO, SPDT
Current Rating500 A
FeaturesLong Lever
IlluminationNon-Illuminated
Ingress Protection DescriptionWaterproof, Dust Tight
Ingress Protection IP RatingIP67
Mounting TypePanel Mount
Number of Positions2
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Switch FunctionOn-Off, On-On
Termination StyleStud
TypeBattery Disconnect
Voltage Rating - DC32 V
