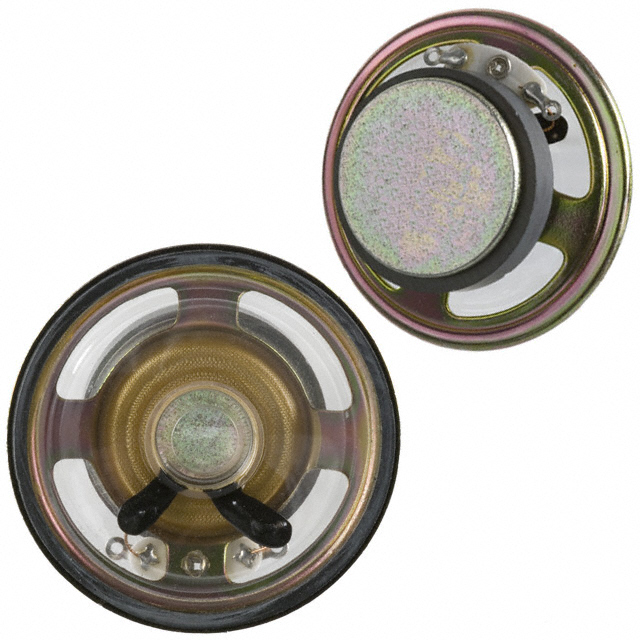

GF0501M
ActiveSame Sky (Formerly CUI Devices)
SPEAKER 8OHM 250MW TOP PORT 86DB
GF0501M
ActiveSame Sky (Formerly CUI Devices)
SPEAKER 8OHM 250MW TOP PORT 86DB
Description
General part information
GF0501M
8 Ohms General Purpose Speaker 250 mW 440 Hz ~ 5.8 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | GF0501M |
|---|---|
| Efficiency - dBA | 86 dBA |
| Efficiency - Testing Length | 500 mm |
| Efficiency - Testing Power | 250 mW |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 440 Hz |
| Frequency Range (Max) | 5.8 kHz |
| Frequency Range (Min) | 440 Hz |
| Height - Seated (Max) | 0.689 in |
| Impedance | 8 Ohm |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Max | 0.5 W |
| Power - Rated | 0.25 W |
| Shape | Round |
| Size / Dimension Diameter | 1.969 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
