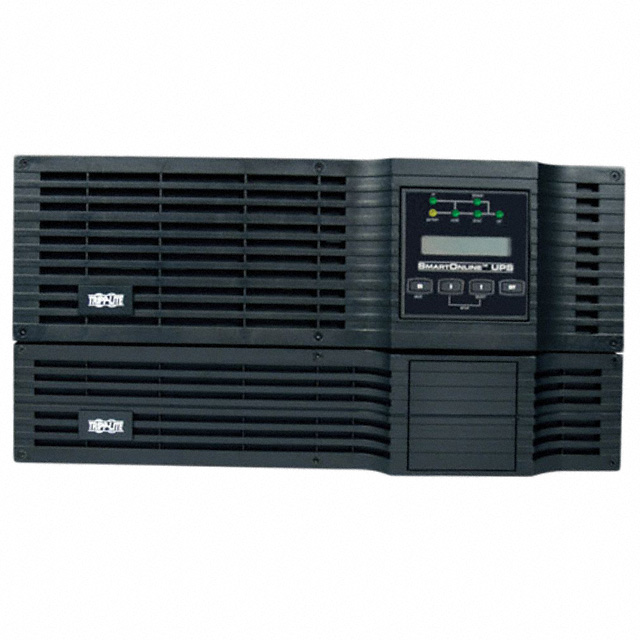

SU5000RT3UHV
ObsoleteEaton Tripp Lite
UPS SMARTONLINE 5KVA 3500W 4OUT
SU5000RT3UHV
ObsoleteEaton Tripp Lite
UPS SMARTONLINE 5KVA 3500W 4OUT
Description
General part information
SU5000RT3UHV
UPS SMARTONLINE 5KVA 3500W 4OUT
Technical Specifications
Parameters and characteristics for this part
| Specification | SU5000RT3UHV |
|---|---|
| AC Outlets (Count) | 4 count |
| Applications | Network, Single Phase |
| Backup Time - Max Load | 8 minutes |
| Cord Length | 10 ft |
| Form | Rackmount |
| Height | 5.201 in |
| Input Connector | NEMA L6-30P |
| Output Connector | NEMA L6-20R, NEMA L6-30R |
| Output Connector Quantity (NEMA L6-20R) | 2 |
| Output Connector Quantity (NEMA L6-30R) | 2 |
| Power - Rated (VA) | 5 kVA |
| Power - Rated (W) | 3500 W |
| Size / Dimension Length | 26 in |
| Size / Dimension Width | 17.48 in |
| Type | Online (Double Conversion) |
| Voltage - Output (1) | 200 V |
| Voltage - Output (2) | 208 V |
| Voltage - Output (3) | 220 V |
| Voltage - Output (4) | 240 VAC |
| Weight | 42 lbs |
