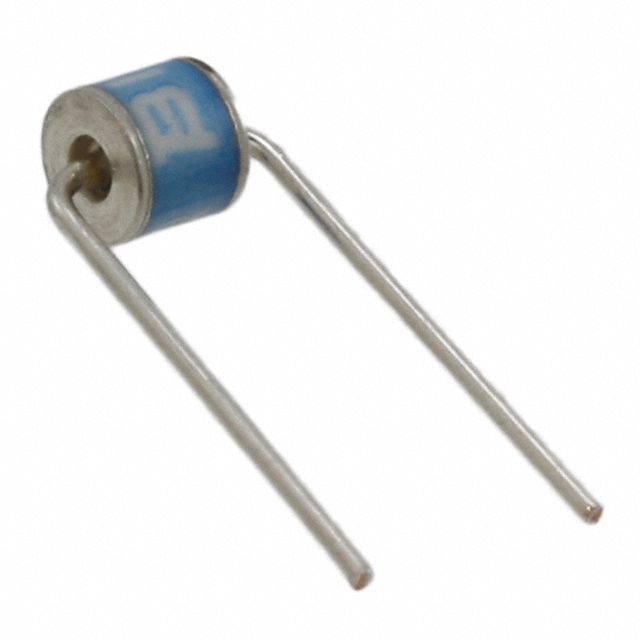

2035-40-B5

Active

Bourns Inc.

GDT 400V 5KA 2 POLE THROUGH HOLE

Search across all available documentation for this part.

Active

Bourns Inc.

GDT 400V 5KA 2 POLE THROUGH HOLE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.50

General part information

Gas Discharge Tube 400 V 5000A (5kA) ±15% 2 Pole Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2035-40-B5	2035 Series

Fail Short	False	False
Impulse Discharge Current (8/20µs)	5000 A	5000 A
Impulse Discharge Current (8/20µs)	5 kA	5 - 2500 kA
Impulse Discharge Current (8/20µs)	-	2.5 kA
Mounting Type	Through Hole	Through Hole, User Defined, Surface Mount
Number of Poles	2	2
Package / Case	Axial Cylinder, Radial Bend	Axial Cylinder, Cylinder No Lead, 2-SMD Cylinder Square End, Axial Cylinder, Radial Bend
Tolerance	15 %	15 - 20 %
Tolerance	-	-12 %
Tolerance	-	15 %
Voltage - DC Spark Over (Nom)	400 V	90 - 1100 V

GDT 150V 5KA 2 POLE THROUGH HOLE

...

Part	Voltage - DC Spark Over (Nom)	Mounting Type	Tolerance	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Number of Poles	Package / Case
Bourns Inc. 2035-15-BLF	150 V	Through Hole	15 %	5000 A	5 kA	2	Axial Cylinder
Bourns Inc. 2035-20-BT1LF	200 V	Through Hole	15 %	5000 A	5 kA	2	Axial Cylinder
Bourns Inc. 2035-20-A	200 V	User Defined	15 %	5000 A	5 kA	2	Cylinder No Lead
Bourns Inc. 2035-23-SM-RP	230 V	Surface Mount	15 %	5000 A	5 kA	2	2-SMD Cylinder Square End
Bourns Inc. 2035-09-B5LF	90 V	Through Hole	20 %	5000 A	5 kA	2	Axial Cylinder
Bourns Inc. 2035-47-SM-RPLF	470 V	Surface Mount	15 %	5000 A	5 kA	2	2-SMD Cylinder Square End
Bourns Inc. 2035-35-B5	350 V	Through Hole	15 %	5000 A	5 kA	2	Axial Cylinder, Radial Bend
Bourns Inc. 2035-25-BLF	250 V	Through Hole	15 %	5000 A	5 kA	2	Axial Cylinder
Bourns Inc. 2035-09-SM-RP	90 V	Surface Mount	20 %	5000 A	5 kA	2	2-SMD Cylinder Square End
Bourns Inc. 2035-09-ALF	90 V	User Defined	20 %	5000 A	5 kA	2	Cylinder No Lead
