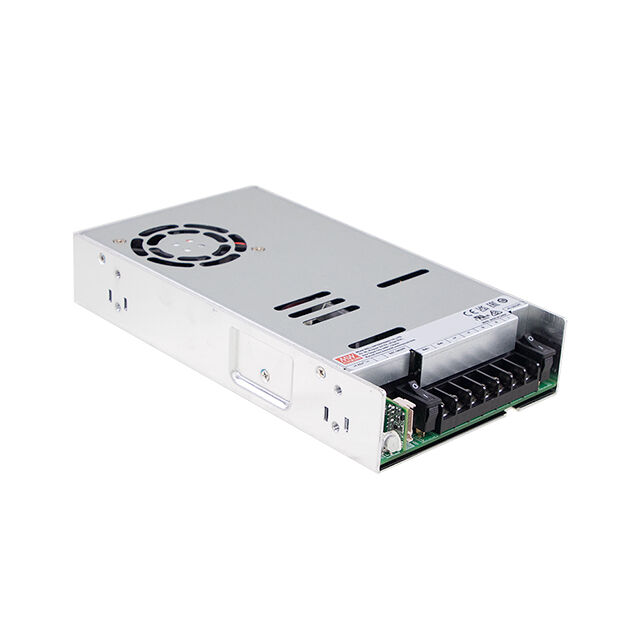

LAD-360DU
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 55.2V 333W
LAD-360DU
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 55.2V 333W
Description
General part information
LAD-360DU
Enclosed AC DC Converters 2 Output 55.2V 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | LAD-360DU |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UKCA, EAC, CB, CE |
| Current - Output 1 | 5.03 A |
| Efficiency | 86.5 % |
| Features | IP67, DC Input Capable, PFC, Adjustable Output, PMBus™, Remote On/Off |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 333 W |
| Size / Dimension Height | 1.18 in |
| Size / Dimension Length | 8.46 in |
| Size / Dimension Width | 4.53 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V, 132 V |
| Voltage - Input (AC) Minimum | 180 VAC, 90 V |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 240 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 55.2 V |
