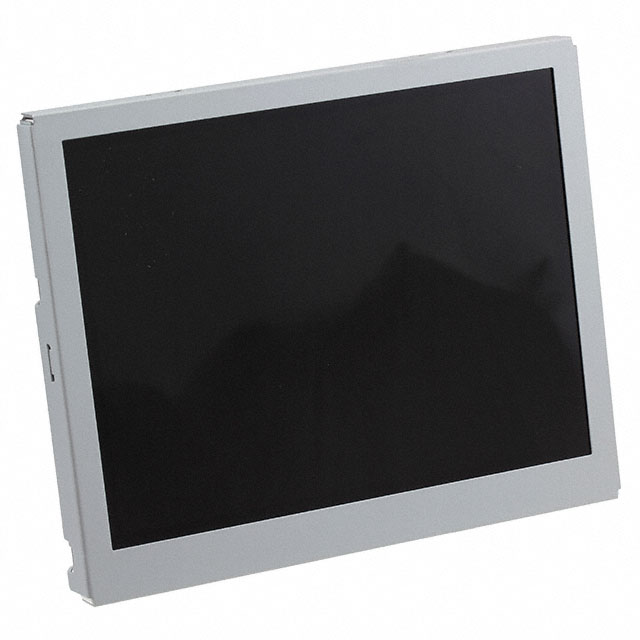

T-55923GD050J-LW-ABN
ObsoleteKyocera International, Inc.
LCD 5" TFT 480X640 WH LED
T-55923GD050J-LW-ABN
ObsoleteKyocera International, Inc.
LCD 5" TFT 480X640 WH LED
Description
General part information
T-55923GD050J-LW-ABN
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 5" (127.00mm) 480 x 640
Technical Specifications
Parameters and characteristics for this part
| Specification | T-55923GD050J-LW-ABN |
|---|---|
| Backlight Color | White |
| Backlight Type | LED |
| Diagonal Screen Size | 5 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch Height | 0.05 mm |
| Dot Pitch Width | 0.16 mm |
| Dot Pixels (Horizontal) | 480 pixels |
| Dot Pixels (Vertical) | 640 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | Parallel |
| Interface Data Width | 24 Bit |
| Viewing Area Height | 101.76 mm |
| Viewing Area Width | 76.32 mm |
