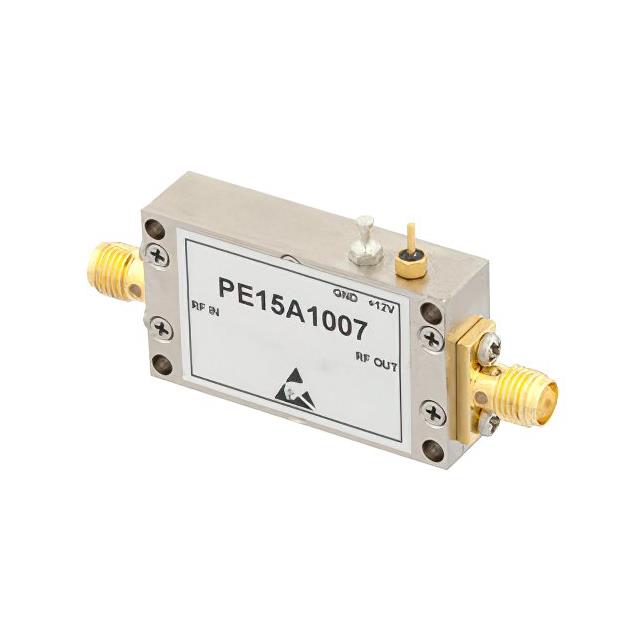

PE15A1007
ActivePasternack
29 DBM IP3, 2.5 DB NF, 16 DBM P1
PE15A1007
ActivePasternack
29 DBM IP3, 2.5 DB NF, 16 DBM P1
Description
General part information
PE15A1007
RF Amplifier IC Radar 9kHz ~ 3GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A1007 |
|---|---|
| Current - Supply | 110 mA |
| Frequency (Max) | 3 GHz |
| Frequency (Min) | 9 kHz |
| Gain | 36 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 2.5 dB |
| P1dB | 16 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | Radar |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 11 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
