PCS104-101M-RC
ActiveAllied Components International

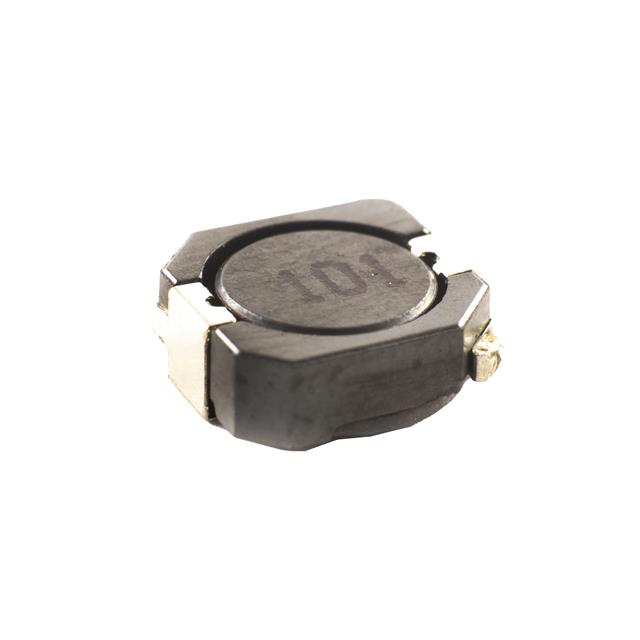

100UH 20% SMD PWR CHIP INDUCTOR
PCS104-101M-RC
ActiveAllied Components International
100UH 20% SMD PWR CHIP INDUCTOR
Description
General part information
PCS104-101M-RC
100 µH Shielded Inductor 1.35 A 304mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PCS104-101M-RC |
|---|---|
| Current Rating | 1.35 A |
| DC Resistance (DCR) (Max) | 304 mOhm |
| Height - Seated (Max) | 0.157 in |
| Inductance | 100 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.413 in |
| Size / Dimension Width | 0.406 in |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
