MIMX8US3DVP08SC
ActiveNXP USA Inc.
I.MX 8ULP: ARM CORTEX -A35 AND CORTEX-M33, RICH 3D/2D GRAPHICS FOR ULTRA LOW-POWER, ENERGY EFFICIENT APPLICATIONS /TRAY ROHS COM
MIMX8US3DVP08SC
ActiveNXP USA Inc.
I.MX 8ULP: ARM CORTEX -A35 AND CORTEX-M33, RICH 3D/2D GRAPHICS FOR ULTRA LOW-POWER, ENERGY EFFICIENT APPLICATIONS /TRAY ROHS COM
Description
General part information
MIMX8US3DVP08SC
ARM® Cortex®-A35 Microprocessor IC i.MX8ULP 1 Core, 64-Bit 800MHz 485-LFBGA (15x15)
Technical Specifications
Parameters and characteristics for this part
| Specification | MIMX8US3DVP08SC |
|---|---|
| Additional Interfaces | MMC/SD/SDIO, USB, TDM, I2C, SPDIF, I2S, UART, SPI |
| Bus Width | 64 Bit |
| Co-Processors/DSP | ARM® Cortex®-M33 |
| Core Processor | ARM® Cortex®-A35 |
| Display & Interface Controllers | MIPI-DSI, MIPI-CSI |
| Ethernet Speed Options | 10Mbps, 100Mbps |
| Graphics Acceleration | No |
| Mounting Type | Surface Mount |
| Number of Cores | 1 Core |
| Operating Temperature (Max) | 95 °C |
| Operating Temperature (Min) | 0 °C |

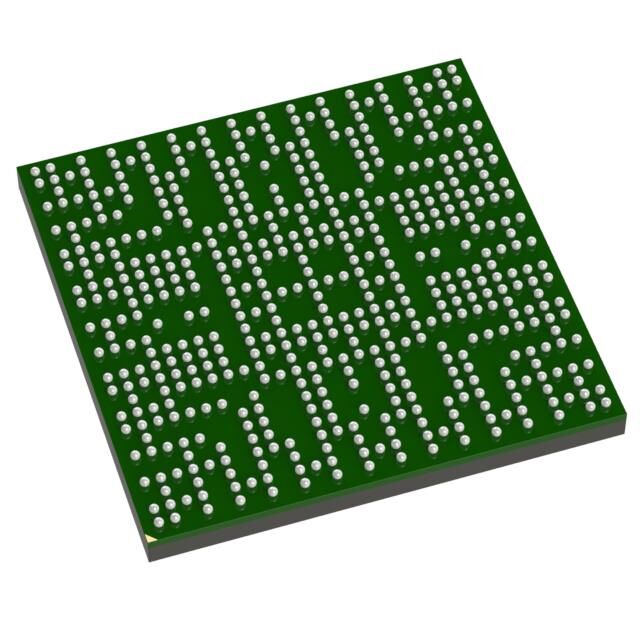

| Package / Case | 485-LFBGA |
| Package Length | 15 mm |
| Package Name | 485-LFBGA |
| Package Width | 15 mm |
| RAM Controllers | LPDDR4, LPDDR3 |
| Speed | 800 MHz |
| USB | USB 2.0 |
| USB 2.0 Count | 2 count |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
