A6S-3102-PH

Active

Omron Electronics Inc-EMC Div

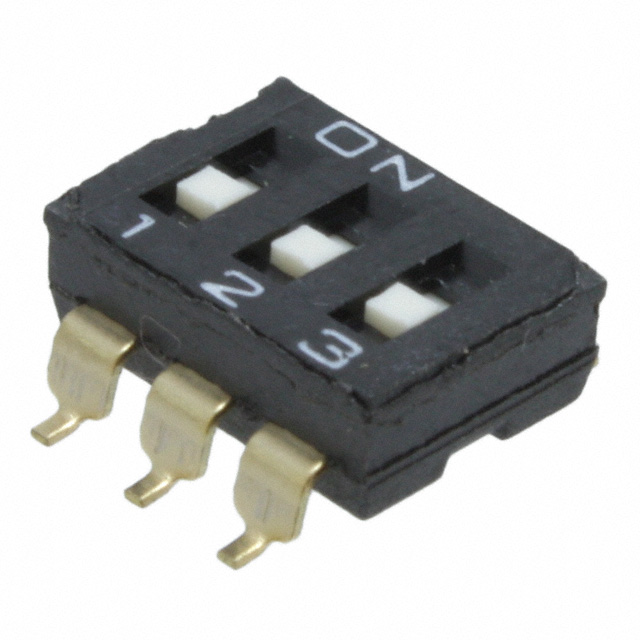

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

A6S-3102-PH

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6S-3102-PH	A6S Series

Actuator Level	Flush, Recessed	Flush, Recessed, Raised
Actuator Type	Slide (Standard)	Slide (Standard)
Circuit	SPST	SPST
Contact Finish	Gold	Gold
Current Rating (Amps)	25 mA	25 mA
Electrical Life	1000 Cycles	1000 Cycles
Features	Tape Seal	Tape Seal
Height Above Board	3.7 mm	3.7 - 4.4 mm
Height Above Board	0.146 in	0.146 - 0.173 in
Length	-	11.1 - 23.8 mm
Length	-	0.437 - 0.937 in
Length [x]	8.56 mm	3.48 - 16.18 mm
Length [x]	0.337 "	0.137 - 0.737 in
Mechanical Life	1000 Cycles	1000 Cycles
Mounting Type	Surface Mount	Surface Mount
Number of Positions	-	1 - 9
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	Gull Wing	Gull Wing
Voltage Rating	24 VDC	24 VDC
Washable	True	True, False

A6S Series

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Number of Positions	Circuit	Features	Mounting Type	Voltage Rating	Length [x]	Length	Current Rating (Amps)	Termination Style	Actuator Level	Contact Finish	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch	Pitch [x]	Electrical Life	Height Above Board	Height Above Board	Mechanical Life	Length [x]	Length
Omron Electronics Inc-EMC Div A6S-7102-H(VNM)	7	SPST	Tape Seal	Surface Mount	24 VDC	0.737 in	18.72 mm	25 mA	Gull Wing	Flush, Recessed	Gold	Slide (Standard)	-20 C	70 °C	0.1 in	Full	2.54 mm	1000 Cycles	3.7 mm	0.146 in	1000 Cycles
Omron Electronics Inc-EMC Div A6S-3102-PH		SPST	Tape Seal	Surface Mount	24 VDC	0.337 "		25 mA	Gull Wing	Flush, Recessed	Gold	Slide (Standard)	-20 C	70 °C	0.1 in	Full	2.54 mm	1000 Cycles	3.7 mm	0.146 in	1000 Cycles	8.56 mm
Omron Electronics Inc-EMC Div A6S-3102-PH(VNM)		SPST	Tape Seal	Surface Mount	24 VDC	0.337 "		25 mA	Gull Wing	Flush, Recessed	Gold	Slide (Standard)	-20 C	70 °C	0.1 in	Full	2.54 mm	1000 Cycles	3.7 mm	0.146 in	1000 Cycles	8.56 mm
Omron Electronics Inc-EMC Div A6S-8104-PMH(VNM)	8	SPST		Surface Mount	24 VDC		21.26 mm	25 mA	Gull Wing	Raised	Gold	Slide (Standard)	-20 C	70 °C	0.1 in	Full	2.54 mm	1000 Cycles	4.4 mm	0.173 in	1000 Cycles		0.837 in
Omron Electronics Inc-EMC Div A6S-2101-PH(VNM)	2	SPST		Surface Mount	24 VDC	0.237 "		25 mA	Gull Wing	Flush, Recessed	Gold	Slide (Standard)	-20 C	70 °C	0.1 in	Full	2.54 mm	1000 Cycles	3.7 mm	0.146 in	1000 Cycles	6.02 mm
Omron Electronics Inc-EMC Div A6S-9104-PH(VNM)	9	SPST		Surface Mount	24 VDC		23.8 mm	25 mA	Gull Wing	Raised	Gold	Slide (Standard)	-20 C	70 °C	0.1 in	Full	2.54 mm	1000 Cycles	4.4 mm	0.173 in	1000 Cycles		0.937 in
Omron Electronics Inc-EMC Div A6S-5102-PH(VNM)		SPST	Tape Seal	Surface Mount	24 VDC		13.64 mm	25 mA	Gull Wing	Flush, Recessed	Gold	Slide (Standard)	-20 C	70 °C	0.1 in	Full	2.54 mm	1000 Cycles	3.7 mm	0.146 in	1000 Cycles		0.537 in
Omron Electronics Inc-EMC Div A6S-3101-PH(VNM)		SPST		Surface Mount	24 VDC	0.337 "		25 mA	Gull Wing	Flush, Recessed	Gold	Slide (Standard)	-20 C	70 °C	0.1 in	Full	2.54 mm	1000 Cycles	3.7 mm	0.146 in	1000 Cycles	8.56 mm
Omron Electronics Inc-EMC Div A6S-4101-PH(VNM)	4	SPST		Surface Mount	24 VDC		11.1 mm	25 mA	Gull Wing	Flush, Recessed	Gold	Slide (Standard)	-20 C	70 °C	0.1 in	Full	2.54 mm	1000 Cycles	3.7 mm	0.146 in	1000 Cycles		0.437 in
Omron Electronics Inc-EMC Div A6S-2102-PMH(VNM)	2	SPST	Tape Seal	Surface Mount	24 VDC	0.237 "		25 mA	Gull Wing	Flush, Recessed	Gold	Slide (Standard)	-20 C	70 °C	0.1 in	Full	2.54 mm	1000 Cycles	3.7 mm	0.146 in	1000 Cycles	6.02 mm
