Description
General part information
TLD5099EPB2BEVALKITTOBO1

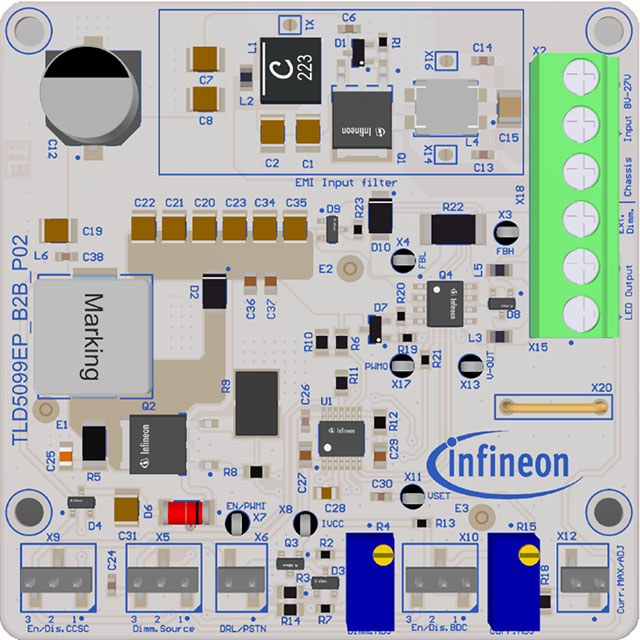

TLD5099EP_B2B is an evaluation board in boost to battery topology designed as LED driver. It can deliver up to 21 W with efficiency above 84%. The board is also equipped with the following features, enabled by jumpers:
Technical Specifications
Parameters and characteristics for this part
| Specification | TLD5099EPB2BEVALKITTOBO1 |
|---|---|
| Contents | Board |
| Current - Output / Channel | 1 A |
| Features | Dimmable |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | TLD5099EP |
| Voltage - Input (Maximum) | 27 V |
| Voltage - Input (Minimum) | 8 V |
| Voltage - Output (Max) | 23 V |
| Voltage - Output (Min) | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
