BMH0701P17A2A
ActiveSCHNEIDER ELECTRIC

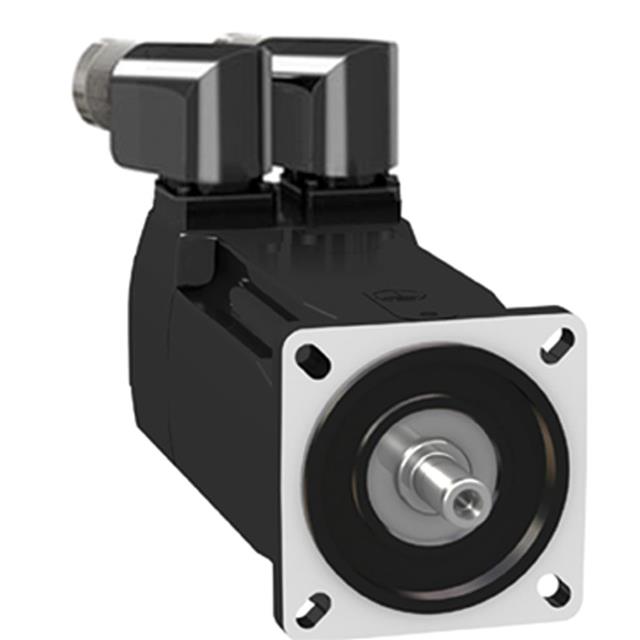

SERVO MOTOR BMH - 1.2 NM - 8000
BMH0701P17A2A
ActiveSCHNEIDER ELECTRIC
SERVO MOTOR BMH - 1.2 NM - 8000
Description
General part information
BMH0701P17A2A
AC Motor Servomotor 8000 RPM 700W 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BMH0701P17A2A |
|---|---|
| Diameter - Shaft | 0.43 in |
| Features | Key |
| Function | Servomotor |
| Length - Shaft and Bearing | 0.91 in |
| Mounting Hole Spacing | 2.36 in |
| Power - Rated | 700 W |
| RPM | 8000 RPM |
| Size / Dimension Length | 2.76 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 2.76 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 1300 mNm |
| Torque - Rated (oz-in) | 184.1 oz-in |
| Type | AC Motor |
| Voltage - Rated | 480 VAC |
