1586102-3
ActiveTE Connectivity AMP Connectors

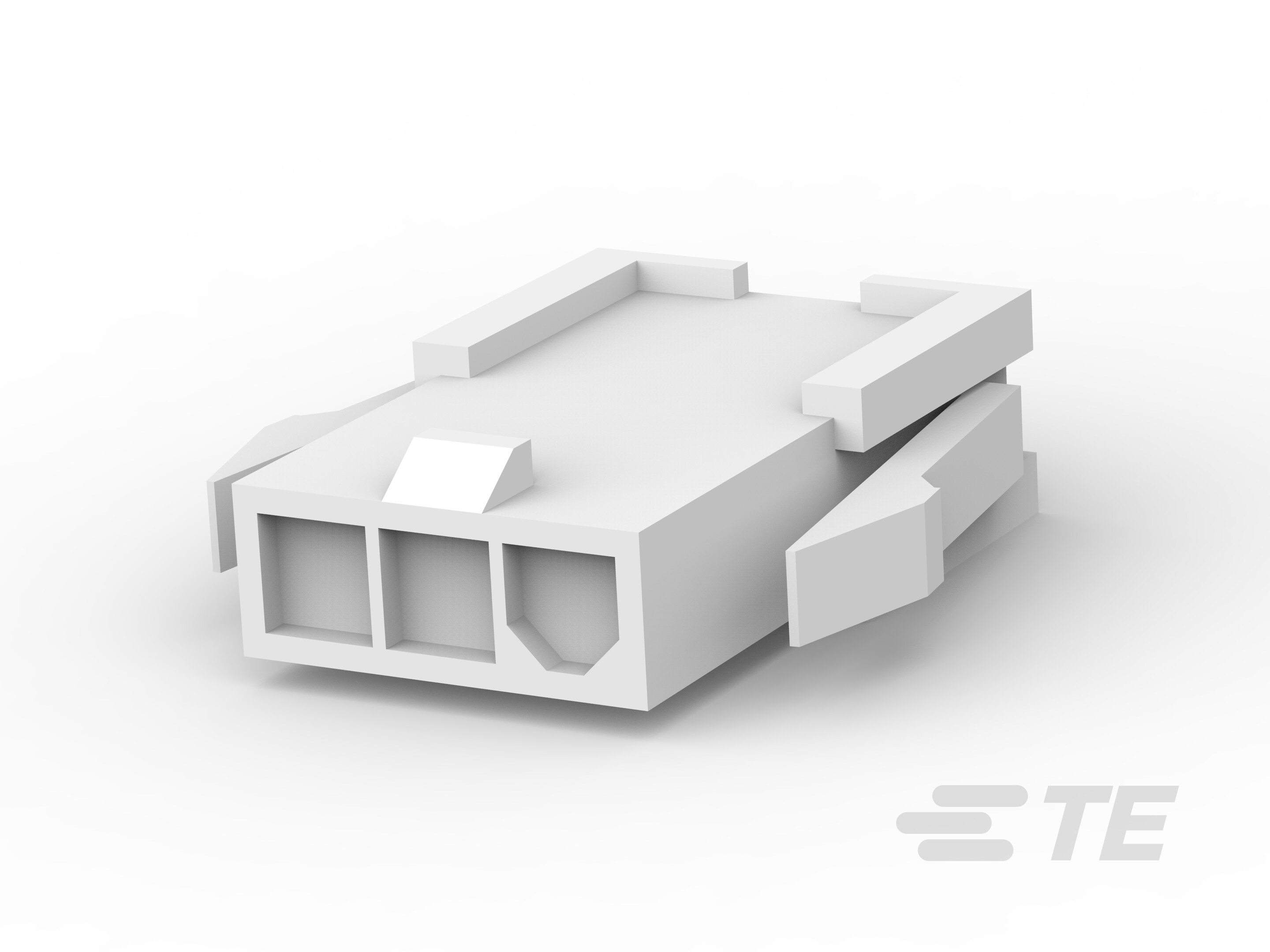

3P PLUG VAL-U-LOK SR PM V0
1586102-3
ActiveTE Connectivity AMP Connectors
3P PLUG VAL-U-LOK SR PM V0
Description
General part information
1586102-3
3 Position, Plug, Housing, Crimp, Wire-to-Panel / Wire-to-Wire, UL 94V-0, 4.2 mm [.165 in] Centerline, 1 Row, 600 VAC, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 1586102-3 |
|---|---|
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.165 in |
