Description
General part information

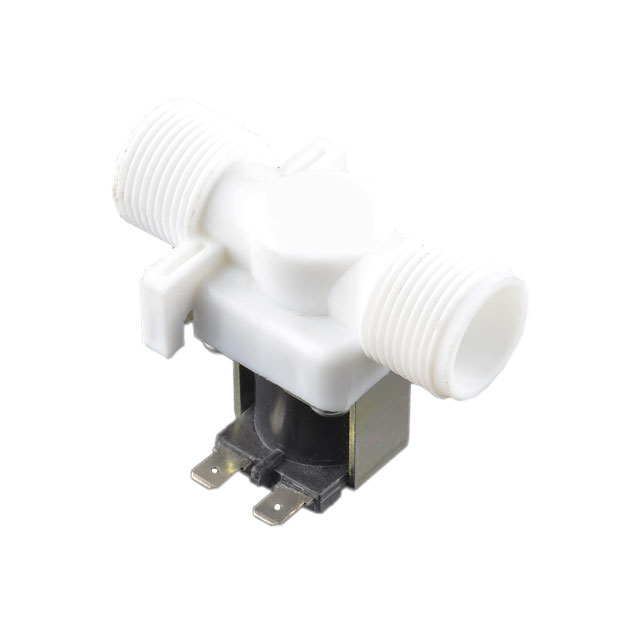

ROB-10456
2/2 Normally Closed Solenoid Valve Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | ROB-10456 |
|---|---|
| Connection Method | Threaded |
| Features | Supply Voltage 12VDC |
| Fluid Type | Liquid |
| Function | 2 Normally Closed, 2 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Pressure (Max) | 116.03 PSI |
| Operating Pressure (Min) | 2.9 PSI |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | 0 °C |
| Thread Size | 0.75 in |
| Thread Standard | NPT |
| Type | Solenoid Valve |
