C19LC14-15-6F
ActivePasternack

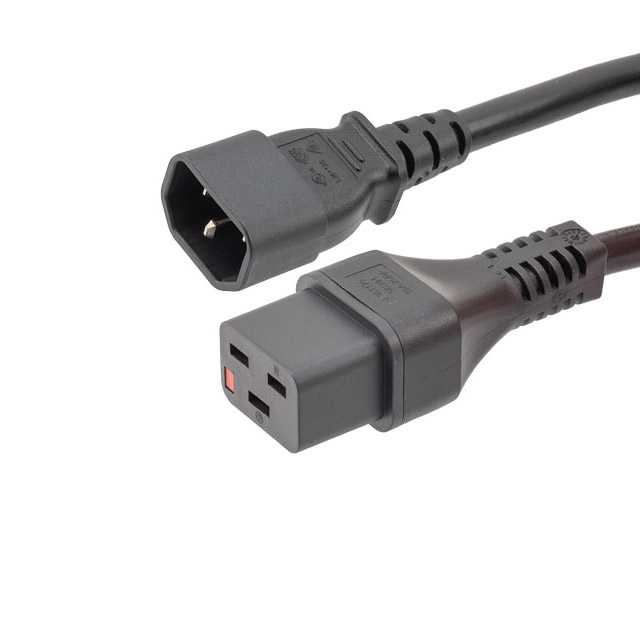

MAINS POWER CORD, IEC 60320 C14 TO IEC 60320 C19, 1.83 M, 15 A, 250 V, BLACK
C19LC14-15-6F
ActivePasternack
MAINS POWER CORD, IEC 60320 C14 TO IEC 60320 C19, 1.83 M, 15 A, 250 V, BLACK
Description
General part information
C19LC14-15-6F
6.00' (1.83m) Power Cord Black IEC 320-C14 To IEC 320-C19 H05VV-F3G1.5, SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | C19LC14-15-6F |
|---|---|
| 1st Connector | IEC 320-C14 |
| 2nd Connector | IEC 320-C19 |
| Color | Black |
| Cord Type | H05VV-F3G1.5, SJT |
| Current Rating | 15 A |
| Length | 6 ft |
| Number of Conductors | 3 |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 250 V |
| Wire Gauge | 14 AWG, 18 AWG |
