19500130
ActiveCML Innovative Technologies LTD

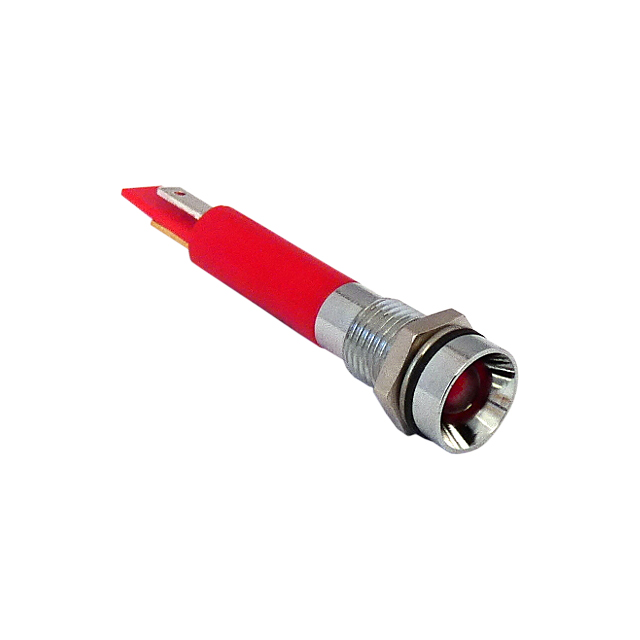

LED PANEL MOUNT INDICATOR, SATIN CHROME BEZEL, RED, 8 MM, 130 VAC, 5 MA, 36 MCD, IP67 ROHS COMPLIANT: YES
19500130
ActiveCML Innovative Technologies LTD
LED PANEL MOUNT INDICATOR, SATIN CHROME BEZEL, RED, 8 MM, 130 VAC, 5 MA, 36 MCD, IP67 ROHS COMPLIANT: YES
Description
General part information
19500130
LED Panel Indicator 130V 5mA Quick Connect - 0.512" (13.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 19500130 |
|---|---|
| Current | 5 mA |
| Ingress Protection | IP67 |
| Lens Color | Red |
| Lens Style | Round, Domed Top |
| Millicandela Rating | 36 mcd |
| Panel Cutout Dimension | 0.315 " |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Length | 0.512 in |
| Termination Style | Quick Connect |
| Type | LED |
| Voltage | 130 V |
