009286 Series

Part	Contact Finish	Number of Positions	Mounting Type	Color	Wire Type	Contact Type	Cable Termination	Number of Rows	Features	Connector Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Wire Gauge
KYOCERA AVX 009286008021906	Tin	8	Free Hanging (In-Line)	White	Discrete	Spring	Poke-In	1	Feed Through	Junction Box	18 AWG	26 AWG
KYOCERA AVX 009286001314906	Tin	1	Free Hanging (In-Line)	White	Discrete	Spring	Poke-In	1		Junction Box			14 AWG
KYOCERA AVX 009286001314206	Tin	1	Free Hanging (In-Line)	Brown	Discrete	Spring	Poke-In	1	Feed Through	Junction Box			14 AWG
KYOCERA AVX 009286001021906	Tin	1	Free Hanging (In-Line)	White	Discrete	Spring	Poke-In	1	Feed Through	Junction Box	18 AWG	26 AWG

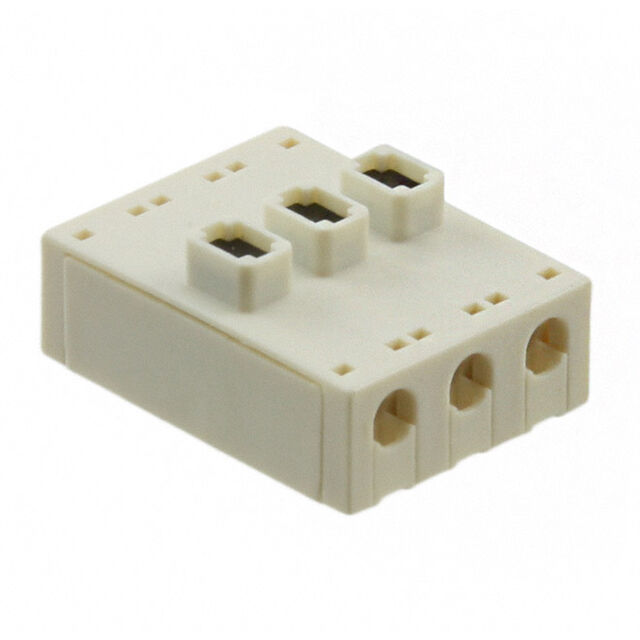

KYOCERA AVX 009286003021906	Tin	3	Free Hanging (In-Line)	White	Discrete	Spring	Poke-In	1	Feed Through	Junction Box	18 AWG	26 AWG
KYOCERA AVX 009286002203906	Tin	2	Free Hanging (In-Line)	White	Discrete	Spring	Poke-In	1	Feed Through	Junction Box	18 AWG	24 AWG
KYOCERA AVX 009286001312706	Tin	1	Free Hanging (In-Line)	Orange	Discrete	Spring	Poke-In	1	Feed Through	Junction Box			12 AWG
KYOCERA AVX 009286001316606	Tin	1	Free Hanging (In-Line)	Green	Discrete	Spring	Poke-In	1	Feed Through	Junction Box	16 AWG	18 AWG
KYOCERA AVX 009286008121506	Tin	8	Free Hanging (In-Line)	Red	Discrete	Spring	Poke-In	1	Feed Through	Junction Box	18 AWG	26 AWG
KYOCERA AVX 009286001314406	Tin	1	Free Hanging (In-Line)	Yellow	Discrete	Spring	Poke-In	1	Feed Through	Junction Box			14 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
