FMC1314315-24
ActiveFairview Microwave
CBL ASSY SMAJACK-10-32PLUG 24
FMC1314315-24
ActiveFairview Microwave
CBL ASSY SMAJACK-10-32PLUG 24
Description
General part information
FMC1314315-24

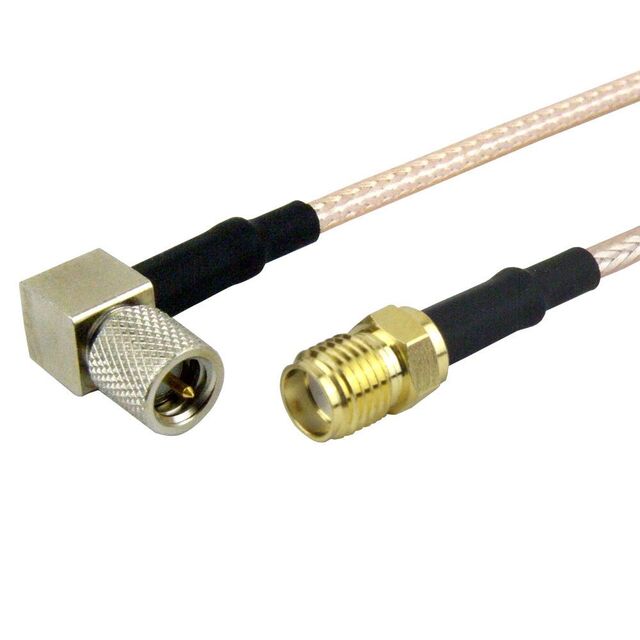

Cable Assembly Coaxial 10-32 to SMA RG-316 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC1314315-24 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | 10-32 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Length | 24 in |
| Overall Impedance | 50 Ohms |
| Style | 10-32 to SMA |
