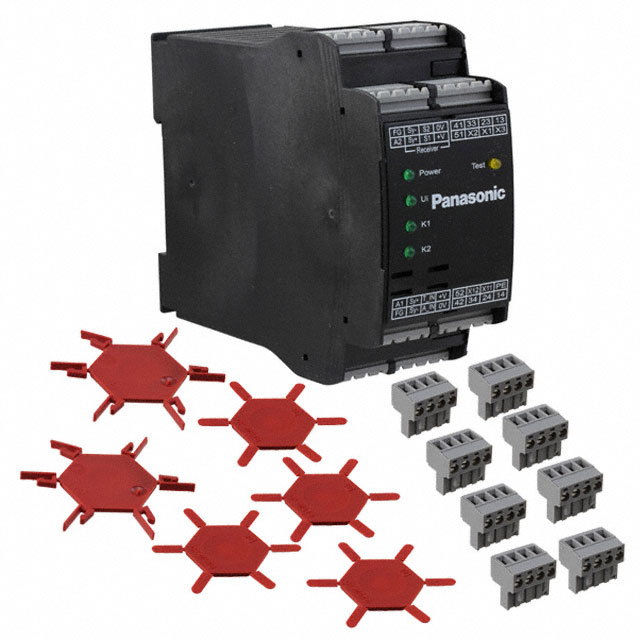

SF-AC
ObsoletePanasonic Industrial Automation Sales
CONTROL SAFETY LIGHT CURTAIN 24V
SF-AC
ObsoletePanasonic Industrial Automation Sales
CONTROL SAFETY LIGHT CURTAIN 24V
Description
General part information
SF-AC
Machine Safety Controller Light Curtain 24VDC Supply DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | SF-AC |
|---|---|
| Approval Agency | CE, UL, CSA, cULus |
| Auxiliary Output Type | Relay |
| Contact Rating (Current) | 6 A |
| Controller Type | Light Curtain |
| Features | Alarm Relay |
| Ingress Protection | IP40 |
| Input Types | Digital |
| Mounting Type | DIN Rail |
| Number of Inputs | 2 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Safety Category | PLe, Category 4 |
| Safety Output Type | Relay |
| Safety Outputs (Count) | 3 count |
| Termination Style | Screw Terminal |
| Voltage - Supply | 24 VDC |
| Weight | 0.882 lb |
