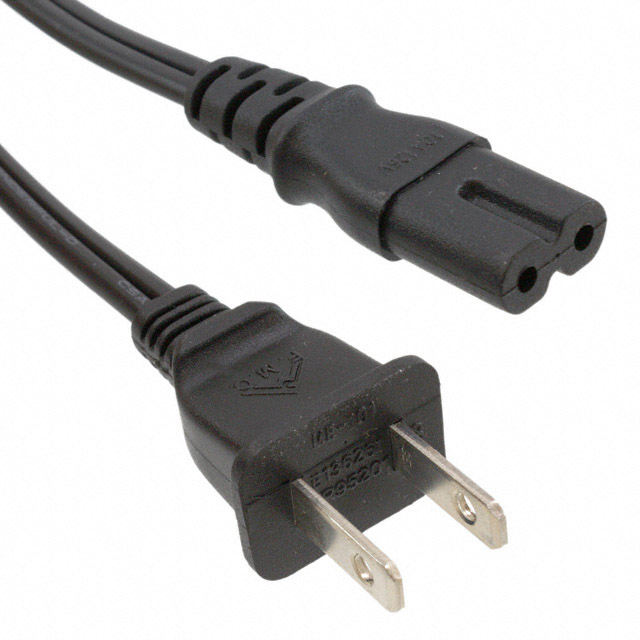

Specification	800-18-3-2-SPT2-BL-00200

1st Connector	NEMA 1-15P
2nd Connector	IEC 320-C7
Approval Agency Marking	CSA, UL
Approved Countries	United States, Canada
Color	Black
Cord Type	SPT-2
Current Rating	7 A
Length	6.56 ft
Number of Conductors	2
Operating Temperature	105 °C
Shielding	Unshielded
Style	Female Sockets (Slots), Male Pins (Blades)
Voltage Rating	125 V
Wire Gauge	18 AWG

800-18 Series

Part	Color	Shielding	Approval Agency Marking	2nd Connector	Current Rating	Cord Type	Features	Approved Countries	Number of Conductors	Style	Wire Gauge	Length	1st Connector	Operating Temperature	Voltage Rating
CNC Tech 800-18-0OD-GR-0006F-1	Gray	Unshielded	cUL UL	IEC 320-C13	10 A	SJT	Hospital Grade	Canada United States	3	Female Sockets (Slots) Male Pins (Blades)	18 AWG	6 ft	NEMA 5-15P	105 °C	125 V
CNC Tech 800-18-39B-BL-0012F-1	Black	Unshielded	cUL UL	IEC 320-C5	10 A	SVT		Canada United States	3	Female Sockets (Slots) Male Pins (Blades)	18 AWG	12 ft	NEMA 5-15P	105 °C	125 V
CNC Tech 800-18-3-0-SPT2-BL-00200	Black	Unshielded	CSA UL	IEC 320-C7	7 A	SPT-2		Canada United States	2	Female Sockets (Slots) Male Pins (Blades)	18 AWG	6.56 ft	NEMA 1-15P	60 °C	125 V
CNC Tech 800-18-39B-BL-0012F	Black	Unshielded	CSA cUL UL	IEC 320-C5	10 A	SVT		Canada United States	3	Female Sockets (Slots) Male Pins (Blades)	18 AWG	12 ft	NEMA 5-15P	105 °C	125 V
CNC Tech 800-18-13D-RE-0015F	Red	Unshielded	CSA cUL UL	IEC 320-C13	10 A	SJT		Canada United States	3	Female Sockets (Slots) Male Pins (Blades)	18 AWG	15 ft	NEMA 5-15P	105 °C	125 V
CNC Tech 800-18-1-2-SVT0-BL-00200	Black	Unshielded	CSA UL	IEC 320-C13 Right Angle	10 A	SVT		Canada United States	3	Female Sockets (Slots) Male Pins (Blades)	18 AWG	6.56 ft	NEMA 5-15P	105 °C	125 V
CNC Tech 800-18-1-2-SVT0-BL-00200-1	Black	Unshielded	cUL UL	IEC 320-C13 Right Angle	10 A	SVT		Canada United States	3	Female Sockets (Slots) Male Pins (Blades)	18 AWG	6.56 ft	NEMA 5-15P	105 °C	125 V
CNC Tech 800-18-66D-BL-0006F	Black	Unshielded	CSA cUL UL	IEC 320-C5	10 A	SVT		Canada United States	3	Female Sockets (Slots) Male Pins (Blades)	18 AWG	6 ft	IEC 320-C14	105 °C	250 V
CNC Tech 800-18-39B-BL-0006F-1	Black	Unshielded	cUL UL	IEC 320-C5	10 A	SVT		Canada United States	3	Female Sockets (Slots) Male Pins (Blades)	18 AWG	6 ft	NEMA 5-15P	105 °C	125 V
CNC Tech 800-18-39B-BL-0006F	Black	Unshielded	CSA cUL UL	IEC 320-C5	10 A	SVT		Canada United States	3	Female Sockets (Slots) Male Pins (Blades)	18 AWG	6 ft	NEMA 5-15P	105 °C	125 V
