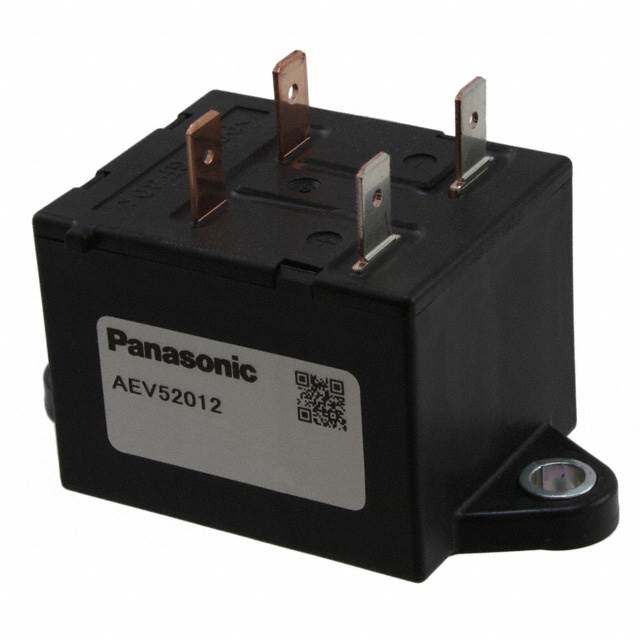

AEV52012
NRNDPanasonic Electronic Components
AUTOMOTIVE RELAY, 12 VDC, 20 A, SPST-NO, PANEL MOUNT, QUICK CONNECT
AEV52012
NRNDPanasonic Electronic Components
AUTOMOTIVE RELAY, 12 VDC, 20 A, SPST-NO, PANEL MOUNT, QUICK CONNECT
Description
General part information
AEV52012
AUTOMOTIVE RELAY, 12 VDC, 20 A, SPST-NO, PANEL MOUNT, QUICK CONNECT
Technical Specifications
Parameters and characteristics for this part
| Specification | AEV52012 |
|---|---|
| Coil Current | 327 mA |
| Coil Power | 3.9 W |
| Coil Type | Non Latching |
| Coil Voltage | 12 VAC |
| Contact Form | SPST-NO |
| Contact Rating (Current) | 20 A |
| Form A Count | 1 |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 50 ms |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Quick Connect Size (0.250") | 0.25 in |
| Release Time | 30 ms |
| Switching Voltage (Nominal) | 400 VDC |
| Termination Style | Quick Connect, Plug In |
