B32355C4255J019
ActiveEPCOS - TDK Electronics
CAP FILM 2.5UF 5% 400VAC RADIAL
B32355C4255J019
ActiveEPCOS - TDK Electronics
CAP FILM 2.5UF 5% 400VAC RADIAL
Description
General part information
B32355C4255J019

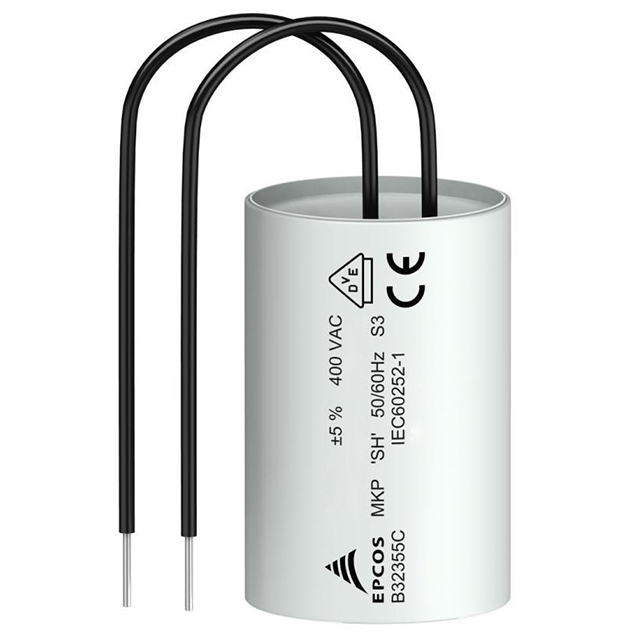

2.5 µF Film Capacitor 400V Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | B32355C4255J019 |
|---|---|
| Applications | Motor Run |
| Capacitance | 2.5 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Features | High Temperature |
| Height - Seated (Max) | 2.126 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 0.984 in |
| Termination | Wire Leads |
| Tolerance | 5 % |
| Voltage Rating - AC | 400 Vpk |
