HR-DUX(10.0AH)F2X4
ObsoleteFDK America, Inc.
BATTERY PACK NIMH 9.6V D
HR-DUX(10.0AH)F2X4
ObsoleteFDK America, Inc.
BATTERY PACK NIMH 9.6V D
Description
General part information
HR-DUX(10.0AH)F2X4

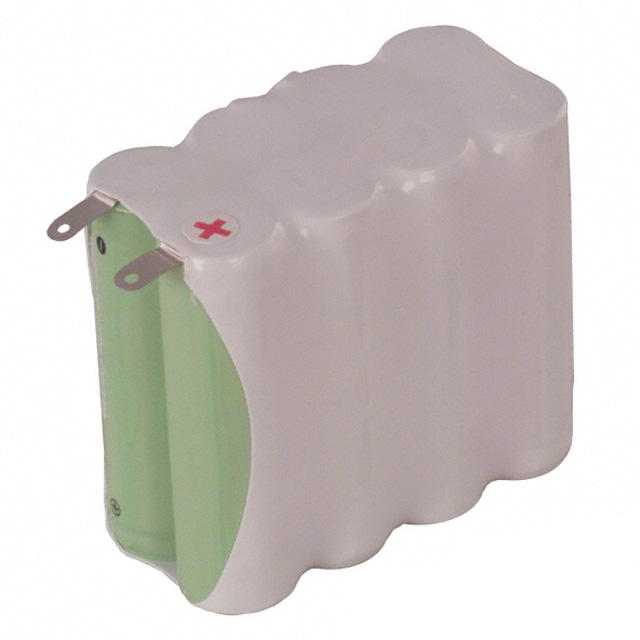

D 9.6 V Nickel Metal Hydride Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | HR-DUX(10.0AH)F2X4 |
|---|---|
| Battery Cell Size | D |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity (Charge) | 9.3 Ah |
| Note | Battery packs made with NIMH cells include a thermostat. |
| Number of Cells | 8 |
| Rechargeability | Yes |
| Size / Dimension Height | 2.33 in |
| Size / Dimension Length | 5.35 in |
| Size / Dimension Width | 2.68 in |
| Structure | Side to Side |
| Structure Cells | 2 |
| Structure Rows | 4 |
| Termination Style | Solder Tab |
| Voltage - Rated | 9.6 V |
| Weight | 1400 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
