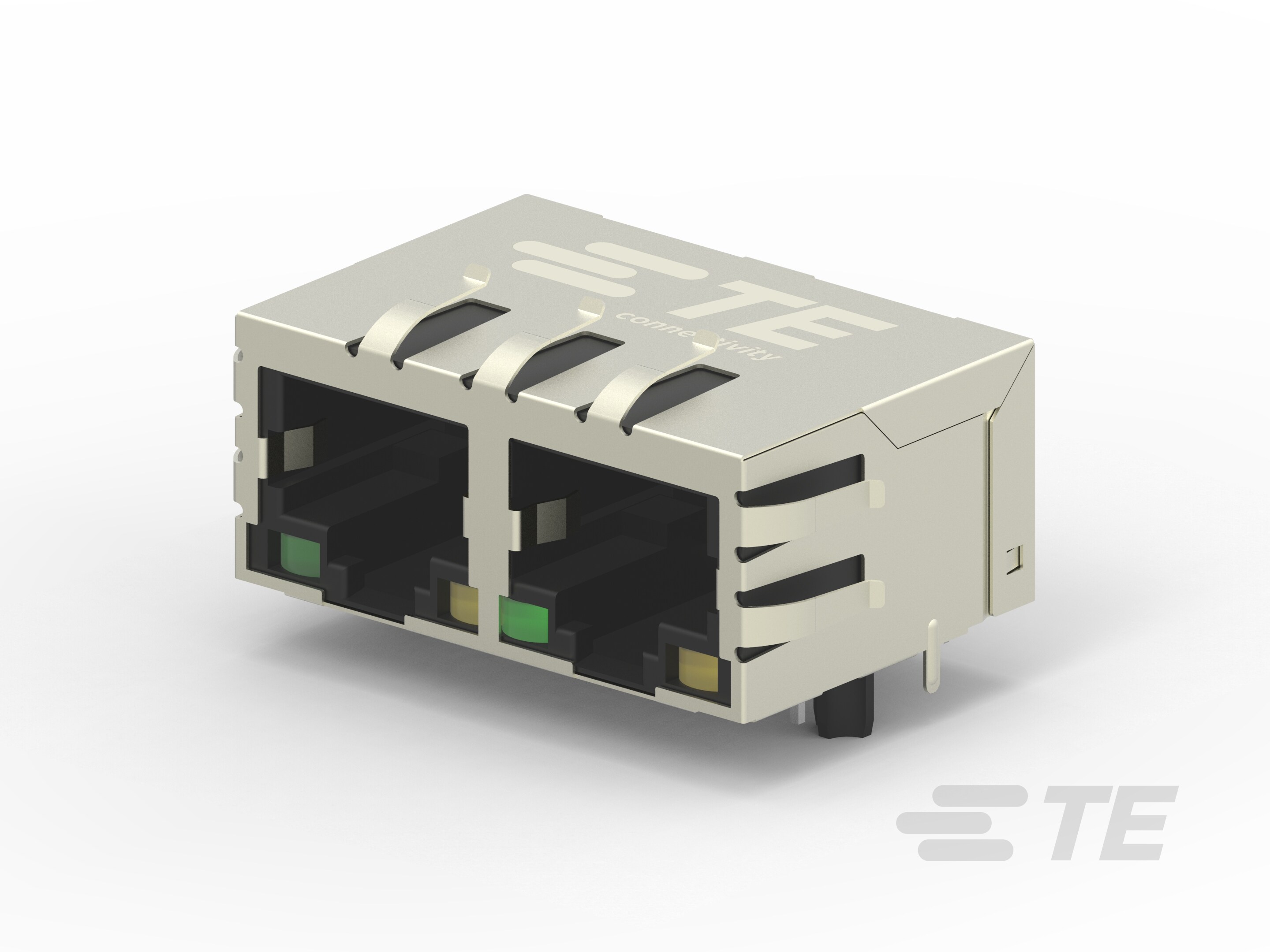

RJ45 JACK INT.MAG. 10/100 LED 1X2-2301996-6

2301996-8

Active
TE Connectivity AMP Connectors

RJ45 JACK INT.MAG. 1GB LED 1X2

Find alt
RJ45 JACK INT.MAG. 10/100 LED 1X2-2301996-6

2301996-8

Active
TE Connectivity AMP Connectors

RJ45 JACK INT.MAG. 1GB LED 1X2

Find alt

Description

General part information

2301996-8

RJ45 with Integrated Magnetics Connector, Multiple Ports, 1 x 2, Jack, Shielded, Cat 5e, Standard - Latch Down, 8 Position, Industrial RJ45 Mag Jack

Technical Specifications

Parameters and characteristics for this part

Specification2301996-8
ApplicationsAutoMDIX, 10/100/1000 Base-T
Connector TypeRJ45
Contact FinishGold
Contact MaterialCopper Alloy
FeaturesBoard Lock
Height Above Board0.531 in
LED ColorYellow, Yellow - Green, Green
Mounting TypeThrough Hole
Number of Cores per Jack8
Number of Ports2
Number of Rows1
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Orientation Angle90 °
Orientation DirectionRight
ShieldingEMI Finger, Shielded
Tab DirectionDown
TerminationSolder
