B57891M0222J000
ActiveEPCOS - TDK Electronics
THERM NTC 2.2KOHM 3900K DISC
B57891M0222J000
ActiveEPCOS - TDK Electronics
THERM NTC 2.2KOHM 3900K DISC
Description
General part information
B57891M0222J000

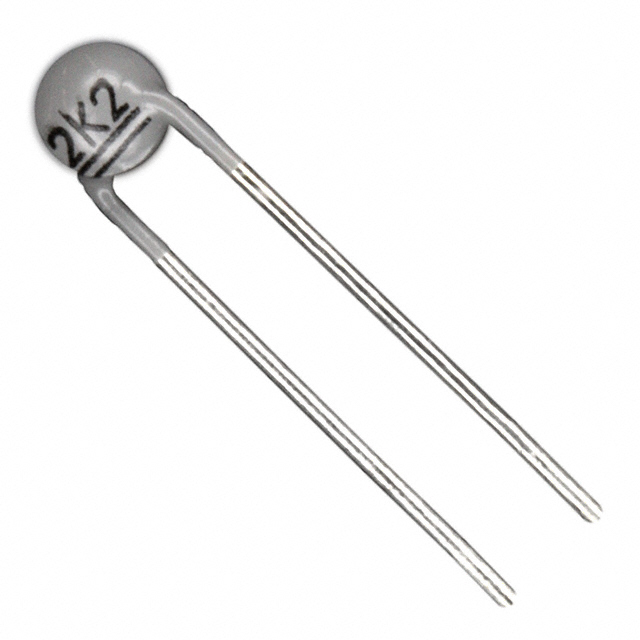

NTC Thermistor 2.2k Disc, 3.5mm Dia x 3.5mm W
Technical Specifications
Parameters and characteristics for this part
| Specification | B57891M0222J000 |
|---|---|
| B Value Tolerance | 3 % |
| Beta (B25/100) | 3900 K |
| Length - Lead Wire | 1.42 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Diameter | 3.5 mm |
| Package Name | Disc |
| Package Width | 3.5 mm |
| Power - Max | 200 mW |
| Resistance (Ohms) | 2.2 kOhm |
| Resistance Tolerance (%) | 5 % |
