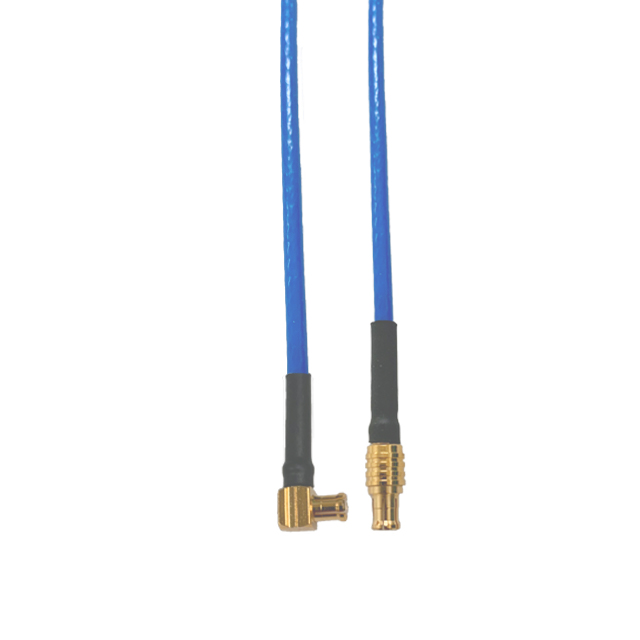

Specification	LSA28-M1M2-S06

1st Connector	MCX Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Diameter	0.085 "
Cable Outer Diameter	0.085 "
Cable Type	Flexible Cable
Cable Type Size	0.085
Color	Blue
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max	6000 MHz
Length	0.5 ft
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Overall Impedance	50 Ohms
Style	MCX

LSA28 Series

Part	2nd Contact Gender	1st Contact Gender	Connector Impedance	Cable Type Size	Cable Type	Cable Outer Diameter	Cable Diameter	Operating Temperature (Max)	Operating Temperature (Min)	1st Connector Mounting Type	Color	2nd Connector Mounting Type	Features	Overall Impedance	Length	1st Connector	Frequency - Max	Style	2nd Connector
ConductRF LSA28-S1M2-S12	Male	Male	50 Ohms	0.085	Flexible Cable	0.085 "	0.085 "	125 °C	-55 °C	Free Hanging (In-Line)	Blue	Free Hanging (In-Line)	Shielded	50 Ohms	12 in	MCX Plug Right Angle	6000 MHz	MCX SMA	SMA Plug
ConductRF LSA28-M1M1-S06	Male	Male	50 Ohms	0.085	Flexible Cable	0.085 "	0.085 "	125 °C	-55 °C	Free Hanging (In-Line)	Blue	Free Hanging (In-Line)	Shielded	50 Ohms	0.5 ft	MCX Plug	6000 MHz	MCX	MCX Plug
ConductRF LSA28-S1M1-S06	Male	Male	50 Ohms	0.085	Flexible Cable	0.085 "	0.085 "	125 °C	-55 °C	Free Hanging (In-Line)	Blue	Free Hanging (In-Line)	Shielded	50 Ohms	0.5 ft	MCX Plug	6000 MHz	MCX SMA	SMA Plug
ConductRF LSA28-M2M2-S18	Male	Male	50 Ohms	0.085	Flexible Cable	0.085 "	0.085 "	125 °C	-55 °C	Free Hanging (In-Line)	Blue	Free Hanging (In-Line)	Shielded	50 Ohms	18 in	MCX Plug Right Angle	6000 MHz	MCX	MCX Plug Right Angle
ConductRF LSA28-S11M-S18	Male	Male	50 Ohms	0.085	Flexible Cable	0.085 "	0.085 "	125 °C	-55 °C	Free Hanging (In-Line)	Blue	Free Hanging (In-Line)	Shielded	50 Ohms	18 in	SMA Plug	6000 MHz	MMCX SMA	MMCX Plug
ConductRF LSA28-M2M2-S12	Male	Male	50 Ohms	0.085	Flexible Cable	0.085 "	0.085 "	125 °C	-55 °C	Free Hanging (In-Line)	Blue	Free Hanging (In-Line)	Shielded	50 Ohms	12 in	MCX Plug Right Angle	6000 MHz	MCX	MCX Plug Right Angle
ConductRF LSA28-S2S2-S08	Male	Male	50 Ohms	2.18	2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	2.18 mm		125 °C	-55 °C	Free Hanging (In-Line)	Blue	Free Hanging (In-Line)	Shielded	50 Ohms	8 in	Right Angle SMA Plug	18 GHz	SMA	Right Angle SMA Plug
ConductRF LSA28-S2M1-S18	Male	Male	50 Ohms	2.18	2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	2.18 mm		125 °C	-55 °C	Free Hanging (In-Line)	Blue	Free Hanging (In-Line)	Shielded	50 Ohms	18 in	MCX Plug	18 GHz	MCX SMA	Right Angle SMA Plug
ConductRF LSA28-2M2M-S06	Male	Male	50 Ohms	0.085	Flexible Cable	0.085 "	0.085 "	125 °C	-55 °C	Free Hanging (In-Line)	Blue	Free Hanging (In-Line)	Shielded	50 Ohms	0.5 ft	MMCX Plug Right Angle	6000 MHz	MMCX	MMCX Plug Right Angle
ConductRF LSA28-S1S1-S12	Male	Male	50 Ohms	2.18	2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	2.18 mm		125 °C	-55 °C	Free Hanging (In-Line)	Blue	Free Hanging (In-Line)	Shielded	50 Ohms	12 in	SMA Plug	18 GHz	SMA	SMA Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

LSA28-M1M2-S06 | Datasheet
