P120K-F20BR5K

Active

TT Electronics/BI

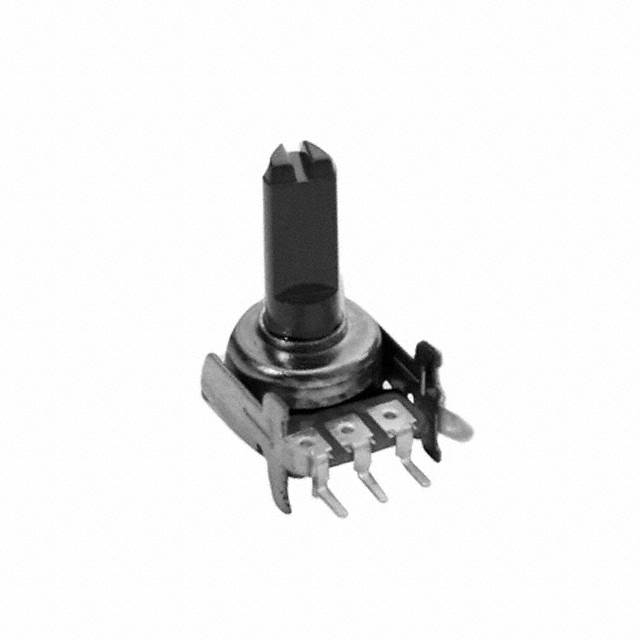

POT 5K OHM 1/20W PLASTIC LINEAR

Search across all available documentation for this part.

Active

TT Electronics/BI

POT 5K OHM 1/20W PLASTIC LINEAR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P120K-F20BR5K	P120K Series

Actuator Diameter [diameter]	0.236 in	0.236 in
Actuator Diameter [diameter]	6 mm	6 mm
Actuator Length	-	15 mm
Actuator Length [z]	20 mm	20 - 30 mm
Actuator Length [z]	0.787 in	0.591 - 1.181 in
Actuator Type	Flatted	Flatted, Knurled
Adjustment Type	Side Adjustment	Top Adjustment, Side Adjustment
Built in Switch	False	False
Mounting Type	Through Hole, Snap In	Through Hole, Snap In
Number of Gangs	1	1 - 2
Number of Turns	1	1
Power (Watts)	0.05 W	0.05 W
Power (Watts)	50 mW	50 mW
Resistance (Ohms)	5 kOhms	5 - 100 kOhms
Resistance (Ohms)	-	10k
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	300 ░	300 ░
Size - Body [diameter]	12.4 mm	12.4 mm
Size - Body [diameter]	0.488 in	0.488 in
Taper	Linear	Linear, Logarithmic
Termination Style	Board Locks, PC Pins	Board Locks, PC Pins
Tolerance	20 %	20 %

POT 10K OHM 1/20W PLASTIC LINEAR

Part	Power (Watts)	Power (Watts)	Rotation	Actuator Length [z]	Actuator Length	Termination Style	Taper	Tolerance	Resistive Material	Number of Turns	Size - Body [diameter]	Size - Body [diameter]	Resistance (Ohms)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Adjustment Type	Mounting Type	Actuator Type	Number of Gangs	Resistance (Ohms)	Actuator Length [z]
TT Electronics/BI P120KGP-F15BR10K	0.05 W	50 mW	300 ░	0.591 in	15 mm	Board Locks, PC Pins	Linear	20 %	Conductive Plastic	1	12.4 mm	0.488 in	10k	0.236 in	6 mm	Top Adjustment	Snap In, Through Hole	Flatted	2
TT Electronics/BI P120K-Y20B100K	0.05 W	50 mW	300 ░	0.787 in		Board Locks, PC Pins	Linear	20 %	Conductive Plastic	1	12.4 mm	0.488 in		0.236 in	6 mm	Side Adjustment	Snap In, Through Hole	Knurled	1	100 kOhms	20 mm
TT Electronics/BI P120KGP-F15B10K	0.05 W	50 mW	300 ░	0.591 in	15 mm	Board Locks, PC Pins	Linear	20 %	Conductive Plastic	1			10k	0.236 in	6 mm	Top Adjustment	Snap In, Through Hole	Flatted	2
TT Electronics/BI P120KGP-Y15AR100K	0.05 W	50 mW	300 ░	0.591 in	15 mm	Board Locks, PC Pins	Logarithmic	20 %	Conductive Plastic	1	12.4 mm	0.488 in		0.236 in	6 mm	Top Adjustment	Snap In, Through Hole	Knurled	2	100 kOhms
TT Electronics/BI P120KGE-Y30BR50K	0.05 W	50 mW	300 ░	1.181 in		Board Locks, PC Pins	Linear	20 %	Conductive Plastic	1	12.4 mm	0.488 in		0.236 in	6 mm	Side Adjustment	Snap In, Through Hole	Knurled	2	50 kOhms	30 mm
TT Electronics/BI P120K-F20BR5K	0.05 W	50 mW	300 ░	0.787 in		Board Locks, PC Pins	Linear	20 %	Conductive Plastic	1	12.4 mm	0.488 in		0.236 in	6 mm	Side Adjustment	Snap In, Through Hole	Flatted	1	5 kOhms	20 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5k Ohm 1 Gang Linear Through Hole, Snap In Potentiometer None 1.0 Kierros Conductive Plastic 0.05W, 1/20W PC Pins, Board Locks
