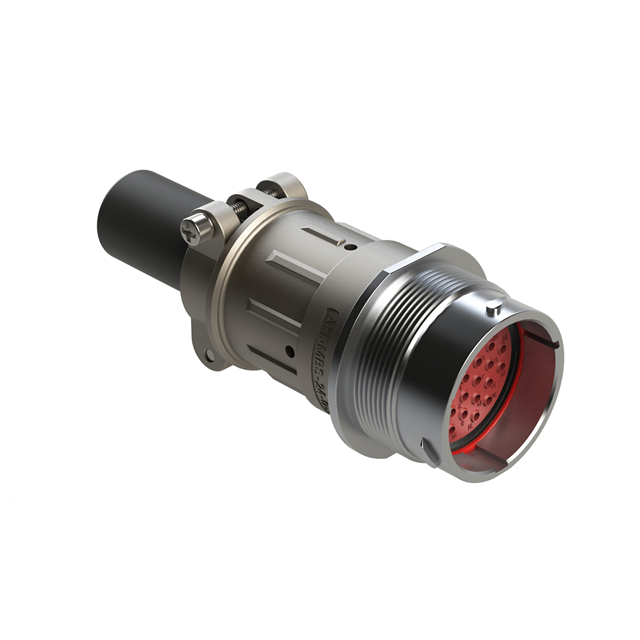

Specification	AHDM04-24-31PR-059

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16 S
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Housing Color	Silver
Includes	Connector, Backshell
Includes Total Count	2 pcs
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Free Hanging (In-Line), Panel Mount
Note	Contacts Not Included, Jam Nut Not Included
Number of Positions	31
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert (Maximum)	31
Shell Size - Insert (Minimum)	24
Shielding	Unshielded
Type	For Male Pins

AHDM04 Series

...

Part	Connector Type	Fastening Type	Shell Finish	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Orientation	Note	Contact Type	Mounting Type	Type	Mounting Feature	Contact Shape	Primary Material	Number of Positions	Ingress Protection IP Rating	Ingress Protection Description	Shell Material	Contact Size	Shell Size - Insert Length	Shell Size - Insert Width	Housing Color	Shielding	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Features	Includes Total Count	Includes	Position Types
McGill Microwave Systems AHDM04-24-14PR	Receptacle Housing	Bayonet Lock	Nickel	125 °C	-55 °C	Thermoplastic	Keyed	Contacts Not Included Jam Nut Not Included	Crimp	Panel Mount	For Male Pins	Bulkhead Front Side Nut	Circular	Metal	14	IP67 IP69K	Dust Tight Water Resistant Waterproof	Zinc Alloy	4 12 16	24 mm	14 mm	Silver	Unshielded
McGill Microwave Systems AHDM04-24-31SR	Receptacle Housing	Bayonet Lock	Nickel	125 °C	-55 °C	Thermoplastic	Keyed	Contacts Not Included Jam Nut Not Included	Crimp	Panel Mount	For Female Sockets	Bulkhead Front Side Nut	Circular		31	IP67 IP69K	Dust Tight Water Resistant Waterproof	Zinc Alloy	16 S			Silver	Unshielded	31	24
McGill Microwave Systems AHDM04-24-19SR-059	Receptacle Housing	Bayonet Lock	Nickel	125 °C	-55 °C	Thermoplastic	Keyed	Contacts Not Included Jam Nut Not Included	Crimp	Free Hanging (In-Line) Panel Mount	For Female Sockets	Bulkhead Front Side Nut	Circular		19	IP67 IP69K	Dust Tight Water Resistant Waterproof	Zinc Alloy	12 16	24 mm	19 mm	Silver	Unshielded			Backshell Cable Clamp	2 pcs	Backshell Connector
McGill Microwave Systems AHDM04-18-14SN-059	Receptacle Housing	Bayonet Lock	Nickel	125 °C	-55 °C	Thermoplastic	Keyed	Contacts Not Included Jam Nut Not Included	Crimp	Free Hanging (In-Line) Panel Mount	For Female Sockets	Bulkhead Front Side Nut	Circular		14	IP67 IP69K	Dust Tight Water Resistant Waterproof	Zinc Alloy	16 S	18 mm	14 mm	Silver	Unshielded			Backshell Cable Clamp	2 pcs	Backshell Connector
McGill Microwave Systems AHDM04-18-06PN	Receptacle Housing	Bayonet Lock	Nickel	125 °C	-55 °C	Thermoplastic	Keyed	Contacts Not Included Jam Nut Not Included	Crimp	Panel Mount	For Male Pins	Bulkhead Front Side Nut	Circular		6	IP67 IP69K	Dust Tight Water Resistant Waterproof	Zinc Alloy	4 16	18 mm	6 mm	Silver	Unshielded						Radsok
McGill Microwave Systems AHDM04-24-07PN-CL22	Receptacle Housing	Bayonet Lock	Nickel	125 °C	-55 °C	Thermoplastic	Keyed	Contacts Not Included Jam Nut Not Included	Crimp	Panel Mount	For Male Pins	Bulkhead Front Side Nut	Circular		7	IP67 IP69K	Dust Tight Water Resistant Waterproof	Zinc Alloy	4 16	24 mm	7 mm	Silver	Unshielded						Radsok
McGill Microwave Systems AHDM04-18-20PR	Receptacle Housing	Bayonet Lock	Nickel	125 °C	-55 °C	Thermoplastic	Keyed	Contacts Not Included Jam Nut Not Included	Crimp	Panel Mount	For Male Pins	Bulkhead Front Side Nut	Circular		20	IP67 IP69K	Dust Tight Water Resistant Waterproof	Zinc Alloy	16 20			Silver	Unshielded	20	18
McGill Microwave Systems AHDM04-24-29SR-059	Receptacle Housing	Bayonet Lock	Nickel	125 °C	-55 °C	Thermoplastic	Keyed	Contacts Not Included Jam Nut Not Included	Crimp	Free Hanging (In-Line) Panel Mount	For Female Sockets	Bulkhead Front Side Nut	Circular		29	IP67 IP69K	Dust Tight Water Resistant Waterproof	Zinc Alloy	12 16 20			Silver	Unshielded	29	24	Backshell Cable Clamp	2 pcs	Backshell Connector
McGill Microwave Systems AHDM04-24-18PR-059	Receptacle Housing	Bayonet Lock	Nickel	125 °C	-55 °C	Thermoplastic	Keyed	Contacts Not Included Jam Nut Not Included	Crimp	Free Hanging (In-Line) Panel Mount	For Male Pins	Bulkhead Front Side Nut	Circular		18	IP67 IP69K	Dust Tight Water Resistant Waterproof	Zinc Alloy	8 12 16	24 mm	18 mm	Silver	Unshielded			Backshell Cable Clamp	2 pcs	Backshell Connector
McGill Microwave Systems AHDM04-18-14PN	Receptacle Housing	Bayonet Lock	Nickel	125 °C	-55 °C	Thermoplastic	Keyed	Contacts Not Included Jam Nut Not Included	Crimp	Panel Mount	For Male Pins	Bulkhead Front Side Nut	Circular		14	IP67 IP69K	Dust Tight Water Resistant Waterproof	Zinc Alloy	16 S	18 mm	14 mm	Silver	Unshielded
