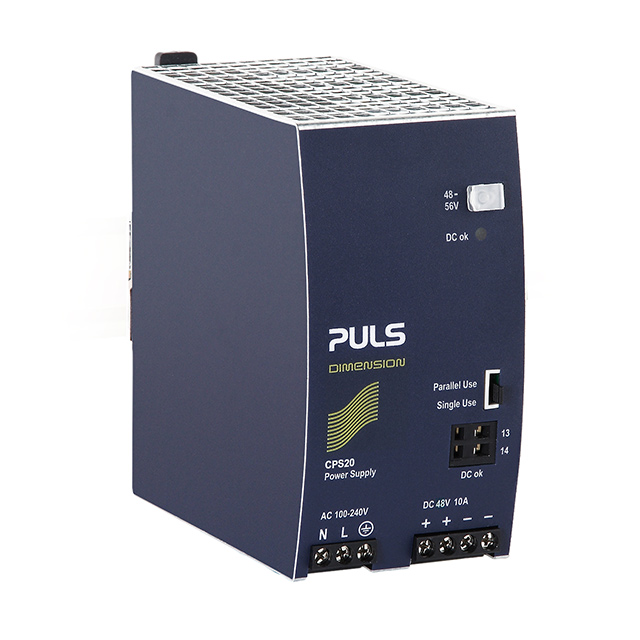

CPS20.481

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 48V 480W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CPS20.481

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 48V 480W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPS20.481	CPS20 Series

AC Voltage - Input [Max]	264 VAC	240 - 264 VAC
AC Voltage - Input [Min]	100 VAC	85 - 100 VAC
Applications	ITE (Commercial), Hazardous Locations	ITE (Commercial), Hazardous Locations
Approval Agency	UL, CSA, EAC, ATEX, ABS, DNV GL, IECEx, IEC	CSA, IECEx, UL, ATEX, EAC, IEC, ABS, DNV GL, EN
Current - Output (Max) [Max]	10 A	10 - 30 A
DC Voltage - Input (Max)	-	360 V
DC Voltage - Input (Min)	-	88 V
Efficiency	93.9 %	92.5 - 94.3 %
Features	Adjustable Output, Load Sharing, Universal Input, PFC	PFC, Universal Input, Load Sharing, Adjustable Output, IP20, Conformal Coating
Input Type	AC	DC, AC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Power (Watts)	480 W	360 - 480 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	2.56 "	2.56 "
Size / Dimension [y]	65 mm	65 mm
Size / Dimension [z]	4.88 "	4.88 "
Size / Dimension [z]	124 mm	124 mm
Standard Number	61010-2-201, 60950-1, 508, Class I Div 2	61010-2-201, 60950-1, 508, Class I Div 2, 50155
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	48 V	12 - 48 V

CPS20 Series

DC/DC DIN RAIL SUPPLY 24V 480W

Part	Voltage - Output 1	Input Type	Standard Number	Voltage - Isolation	DC Voltage - Input (Max) [Max]	Approval Agency	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Applications	Features	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	DC Voltage - Input (Min) [Min]	Efficiency	AC Voltage - Input [Max]	AC Voltage - Input [Min]
PULS, LP CPS20.241-D1	24 V	DC	508, 60950-1, 61010-2-201, Class I Div 2	3000 V	360 V	ATEX, CSA, EAC, IEC, IECEx, UL	1	-25 °C	70 °C	480 W	ITE (Commercial)	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	20 A	4.88 "	2.56 "	65 mm	5 in	127 mm	124 mm	88 V
PULS, LP CPS20.241	24 V	AC	508, 60950-1, 61010-2-201, Class I Div 2	3000 V		ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	1	-25 °C	70 °C	480 W	Hazardous Locations, ITE (Commercial)	Adjustable Output, Load Sharing, PFC, Universal Input	20 A	4.88 "	2.56 "	65 mm	5 in	127 mm	124 mm		94 %	264 VAC	100 VAC
PULS, LP CPS20.481-D1	48 V	DC	508, 60950-1, 61010-2-201, Class I Div 2	3000 V	360 V	ATEX, CSA, EAC, IEC, IECEx, UL	1	-25 °C	70 °C	480 W	ITE (Commercial)	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	10 A	4.88 "	2.56 "	65 mm	5 in	127 mm	124 mm	88 V	92.8 %
PULS, LP CPS20.121	12 V	AC	508, 60950-1, 61010-2-201, Class I Div 2	3000 V		ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	1	-25 °C	70 °C	360 W	Hazardous Locations, ITE (Commercial)	Adjustable Output, Load Sharing, PFC, Universal Input	30 A	4.88 "	2.56 "	65 mm	5 in	127 mm	124 mm		92.5 %	264 VAC	85 VAC
PULS, LP CPS20.241-C1	24 V	AC	50155, 508, 60950-1, 61010-2-201, Class I Div 2	3000 V		ABS, ATEX, CSA, DNV GL, EAC, EN, IEC, IECEx, UL	1	-25 °C	70 °C	480 W	Hazardous Locations, ITE (Commercial)	Adjustable Output, Conformal Coating, Load Sharing, PFC, Universal Input	20 A	4.88 "	2.56 "	65 mm	5 in	127 mm	124 mm		94 %	240 VAC	100 VAC
PULS, LP CPS20.361	36 V	AC	508, 60950-1, 61010-2-201, Class I Div 2	3000 V		ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	1	-25 °C	70 °C	480 W	Hazardous Locations, ITE (Commercial)	Adjustable Output, Load Sharing, PFC, Universal Input	13.3 A	4.88 "	2.56 "	65 mm	5 in	127 mm	124 mm		94.3 %	240 VAC	100 VAC
PULS, LP CPS20.481	48 V	AC	508, 60950-1, 61010-2-201, Class I Div 2	3000 V		ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	1	-25 °C	70 °C	480 W	Hazardous Locations, ITE (Commercial)	Adjustable Output, Load Sharing, PFC, Universal Input	10 A	4.88 "	2.56 "	65 mm	5 in	127 mm	124 mm		93.9 %	264 VAC	100 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 598.50

Description

General part information

CPS20 Series

AC/DC DIN RAIL SUPPLY 48V 480W

Documents

Technical documentation and resources
