C6061A.41.01
ActivePrysmian Group

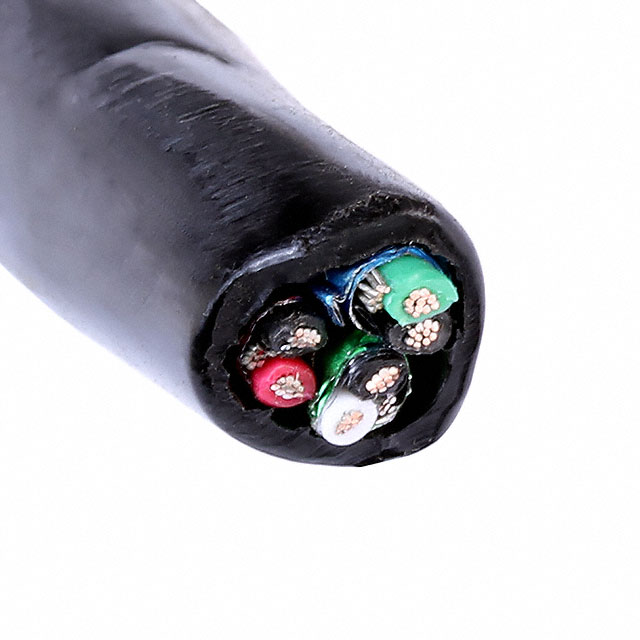

MULTI-PAIR 6COND 20AWG BLK 500'
C6061A.41.01
ActivePrysmian Group
MULTI-PAIR 6COND 20AWG BLK 500'
Description
General part information
C6061A.41.01
MULTI-PAIR 6COND 20AWG BLK 500'
Technical Specifications
Parameters and characteristics for this part
| Specification | C6061A.41.01 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Arrangement | Twisted |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 10 |
| Conductor Strand Gauge | 30 |
| Features | Direct Burial |
| Jacket (Insulation) Diameter | 0.34 in |
| Jacket (Insulation) Material | Polyethylene (PE) |
| Jacket (Insulation) Thickness | 0.047 in |
| Jacket Color | Black |
| Length | 1000 ft, 500 ft |
| Number of Conductors | 6 |
| Number of Conductors - Pair | 3 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Audio-Video, Home |
| Voltage | 350 V |
| Wire Gauge | 20 AWG |
