2178561-2
ActiveTE Connectivity AMP Connectors
STD-TIM GEH 2P_V0-GWT
2178561-2
ActiveTE Connectivity AMP Connectors
STD-TIM GEH 2P_V0-GWT
Description
General part information
RAST 5D Series

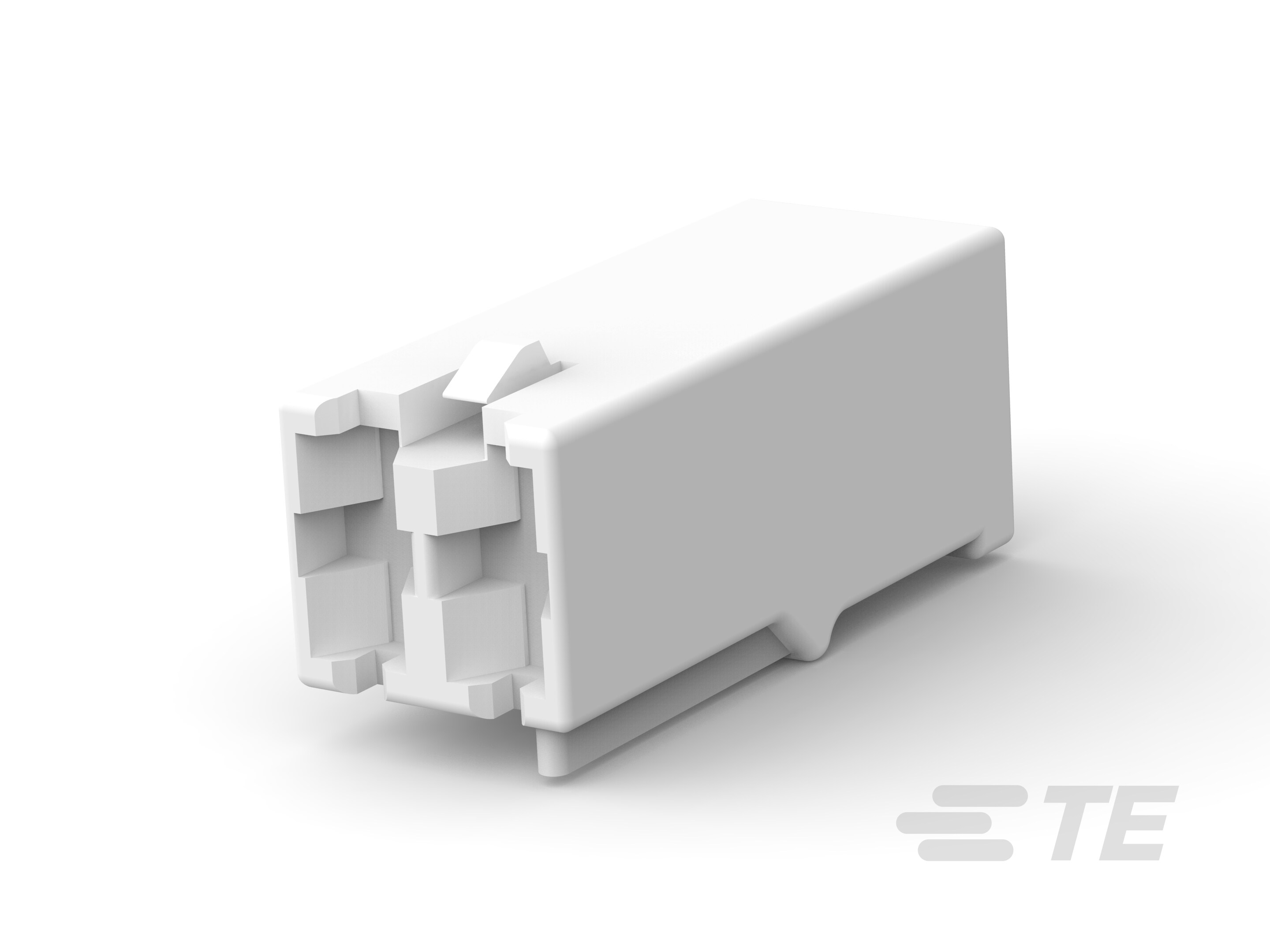

Housing, Receptacle, Wire-to-Wire, 2 Position, 5 mm [.197 in] Centerline, Crimp, 1 Row, Natural, Wire & Cable, Power & Signal, RAST 5D
Technical Specifications
Parameters and characteristics for this part
| Specification | 2178561-2 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
| Row Spacing | 0.139 in |
