Description
General part information

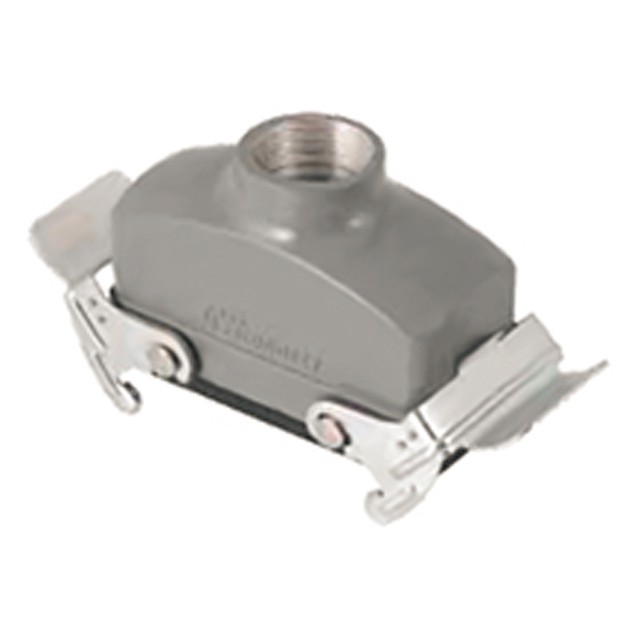

0936013750
CONN HOOD TOP ENTRY SZ24B PG21
Technical Specifications
Parameters and characteristics for this part
| Specification | 0936013750 |
|---|---|
| Connector Type | Hood |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Lock Location | Locking Clip (2) on Hood Top |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | 24B |
| Size / Dimension Height | 2.913 in |
| Size / Dimension Length | 4.744 in |
| Size / Dimension Width | 1.713 in |
| Style | Top Entry |
| Thread Size | PG21 |
