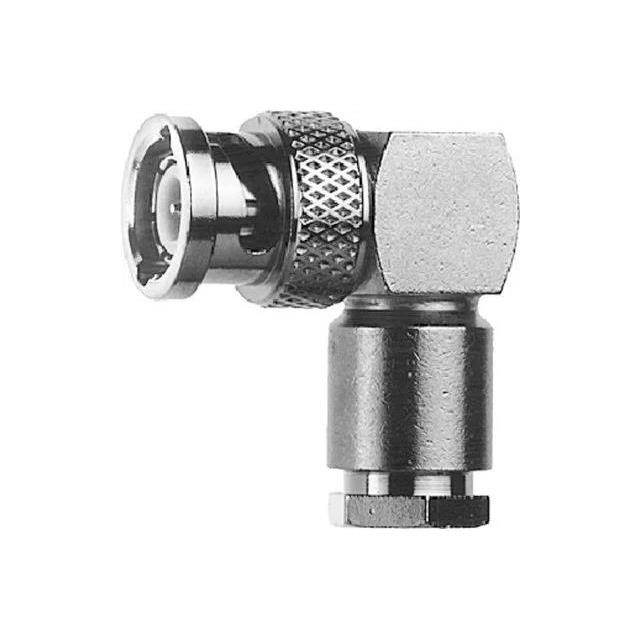

Specification	100023333

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-58, 142, 141, 9907, LMR-195, 58C, Belden 7806A
Center Contact Material	Copper Alloy
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max	4 GHz
Housing Color	Silver
Impedance	50 Ohm
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mating Cycles	500 cycles
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Shield Termination	Clamp
Voltage Rating	500 V
