2315834-2
ActiveTE Connectivity AMP Connectors

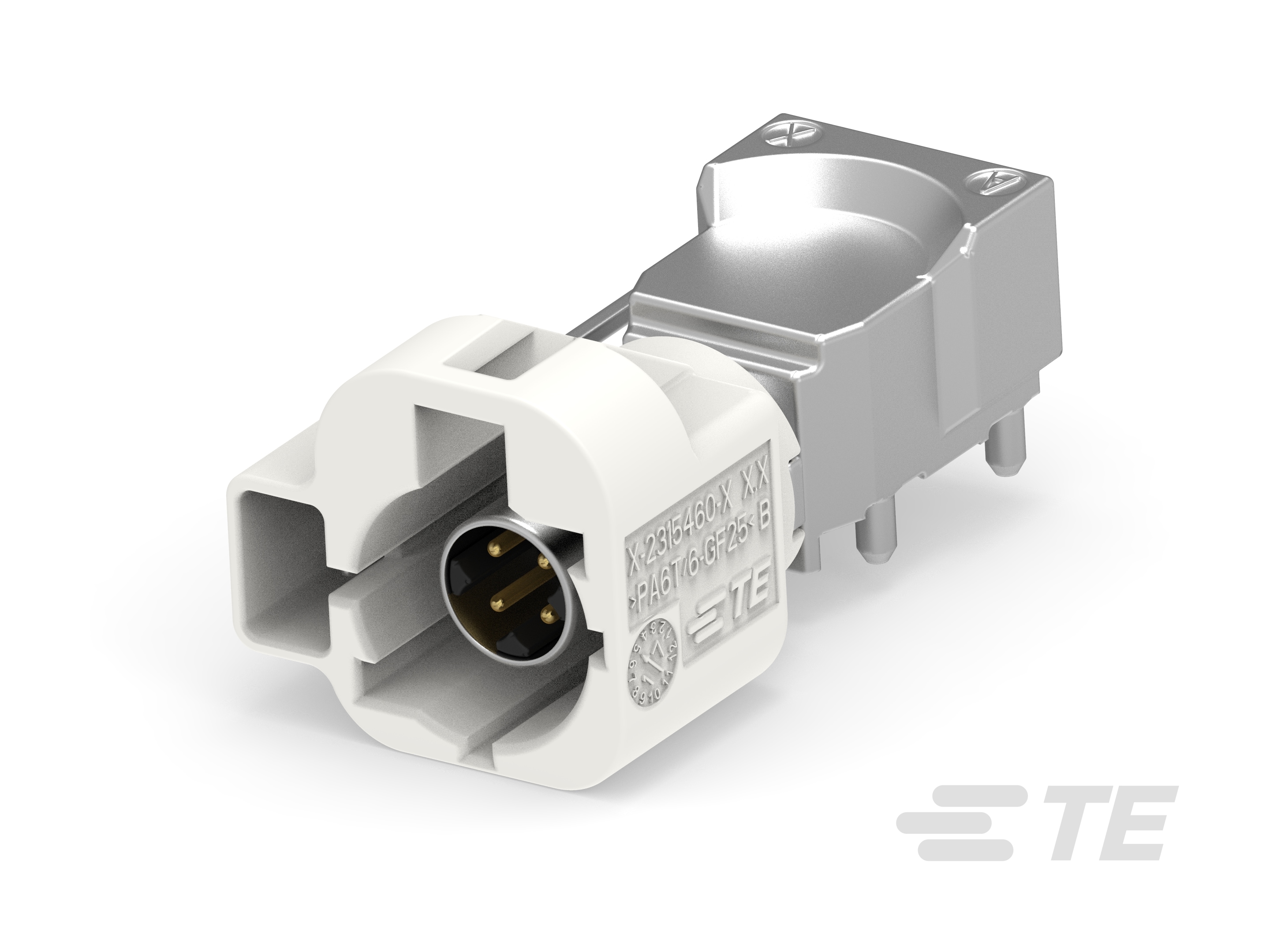

6POS,HSD DIA 0.6,HDR ASSY,90DEG,COD B
2315834-2
ActiveTE Connectivity AMP Connectors
6POS,HSD DIA 0.6,HDR ASSY,90DEG,COD B
Description
General part information
2315834-2
Wire-to-Board, Shielded, Horizontal, 6 Position, Board Mount, B Code, 2 mm / 2.54 mm [.07 in / .1 in] Centerline, Signal, Data Connectivity Headers
Technical Specifications
Parameters and characteristics for this part
| Specification | 2315834-2 |
|---|---|
| Center Contact Material | Phosphor Bronze |
| Connector Style | Fakra, Quadraxial, HSD® |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Latch Lock |
| Features | Code B |
| Housing Color | White |
| Impedance | 50 Ohm |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Shield Termination | Solder |
