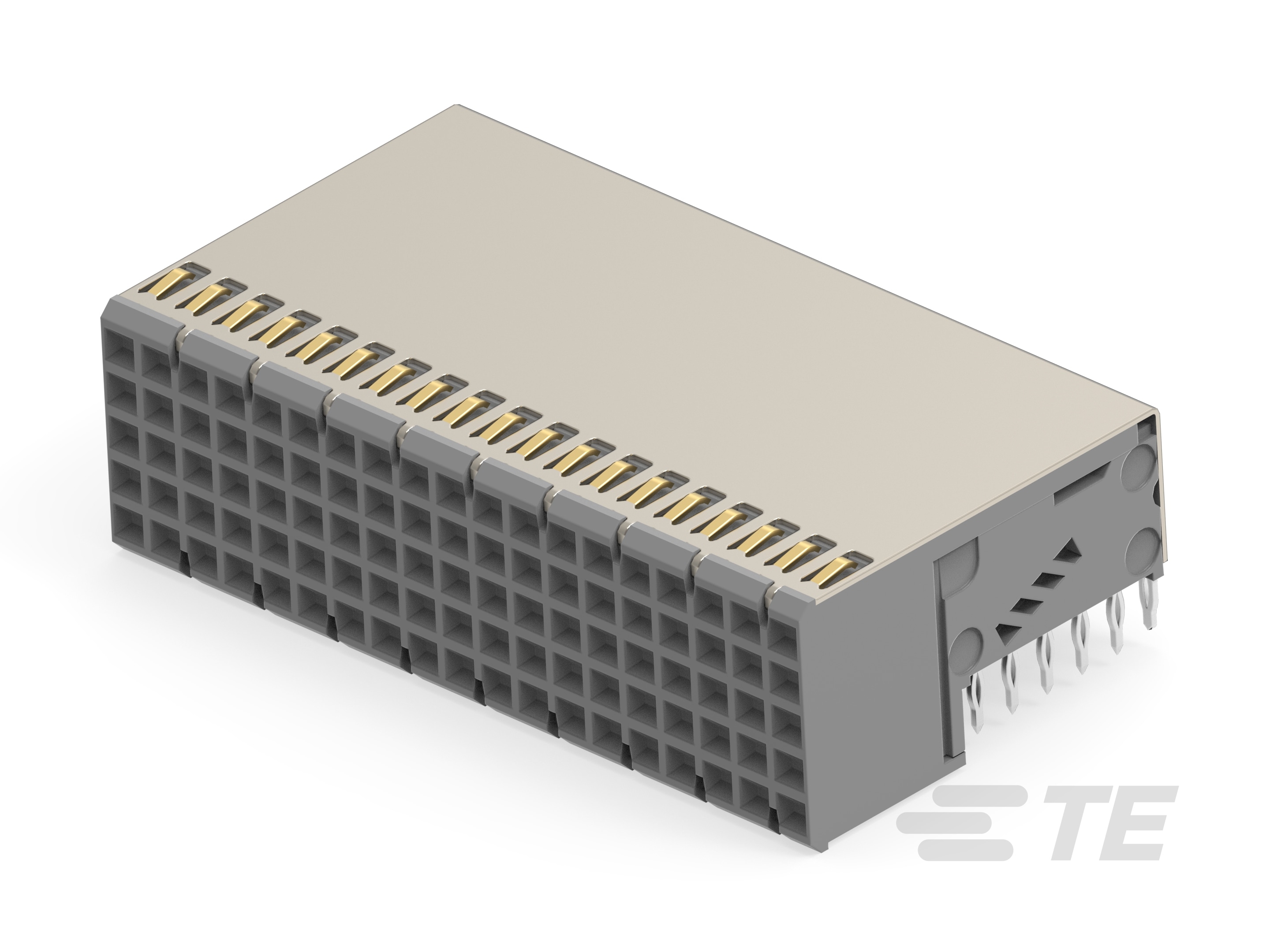

Z-PACK/B19 RAF 95P EON-2392853-1

2392853-1

Active
TE Connectivity AMP Connectors

CONN HARD METRIC RCP 95 POS 2MM PRESS FIT RA THRU-HOLE TRAY

Find alt
Z-PACK/B19 RAF 95P EON-2392853-1

2392853-1

Active
TE Connectivity AMP Connectors

CONN HARD METRIC RCP 95 POS 2MM PRESS FIT RA THRU-HOLE TRAY

Find alt

Description

General part information

Z-PACK 2mm HM Series

Hard Metric Backplane PCB Mount Receptacle, ≤1 Gb/s, 19 Column, 5 Row, Mezzanine, 95 Position, 2 mm [.078 in] Centerline, Right Angle, Z-PACK 2mm HM

Technical Specifications

Parameters and characteristics for this part

Specification2392853-1
Connector StyleB 19
Connector TypeReceptacle, Female Sockets
Connector UsageBackplane
Contact FinishGold
Contact Finish Thickness50 µin
Current Rating1.5 A
FeaturesUpper Shield
Mounting TypeRight Angle, Through Hole, Board Edge
Number of Positions95
Number of Positions LoadedAll
Number of Rows5
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Pitch0.079 in
TerminationPress-Fit
Voltage Rating500 V
