BTH1-11-05-1-B
ActiveTE Connectivity AMP Connectors
BTH1-11-05-1-B
BTH1-11-05-1-B
ActiveTE Connectivity AMP Connectors
BTH1-11-05-1-B
Description
General part information
BTH1-11-05-1-B

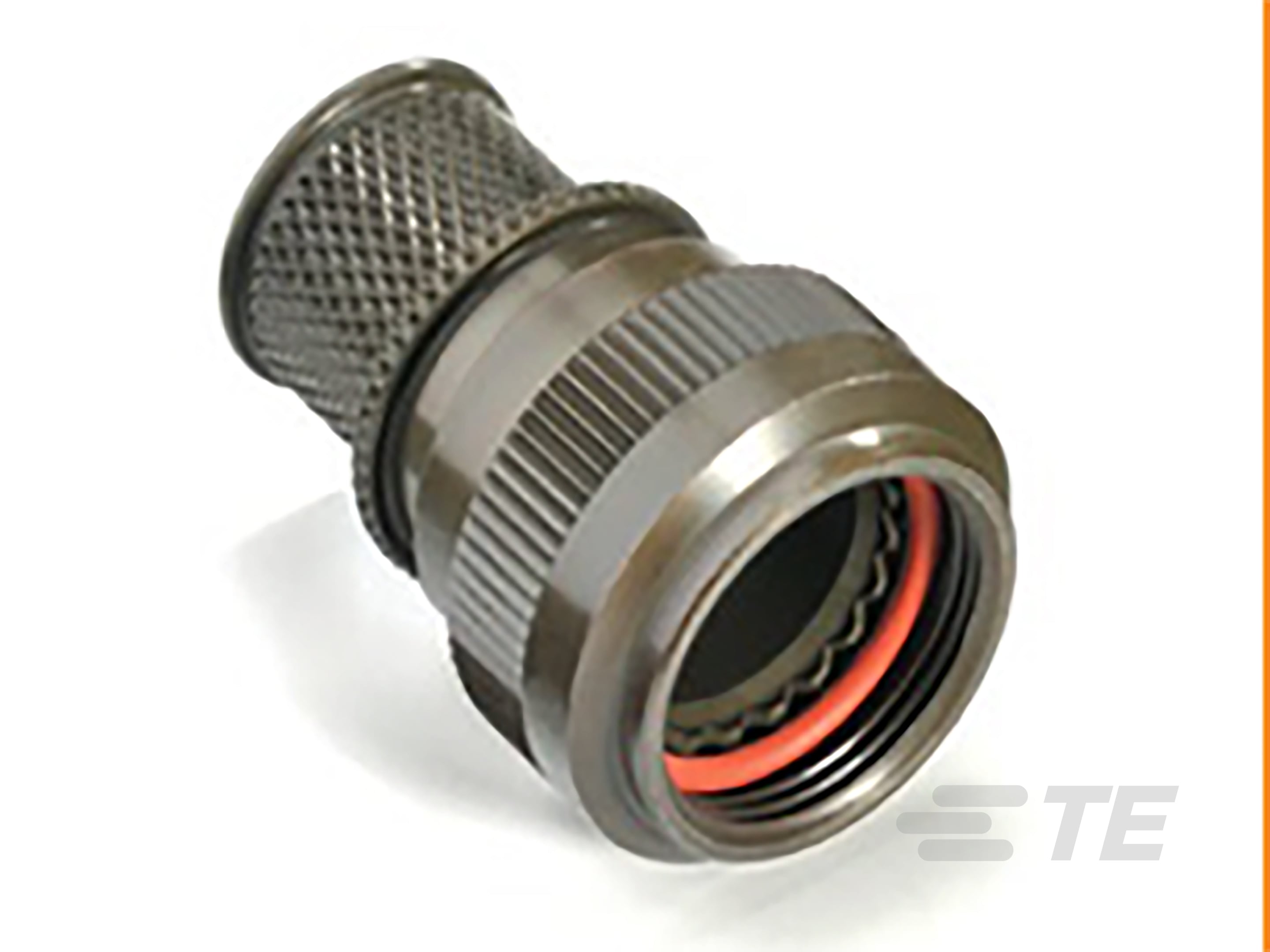

Ruggedized, Backshell, 7.9 mm [.311 in] Cable Entry, Aluminum, Straight, 11 Shell Size, 05 Entry Size
Technical Specifications
Parameters and characteristics for this part
| Specification | BTH1-11-05-1-B |
|---|---|
| Cable Exit Angle | 180 ° |
| Cable Opening | 0.311 in |
| Color | Olive Drab |
| Diameter - Outside | 0.827 in |
| Material | Aluminum |
| Plating | Cadmium |
| Primary Material | Metal |
| Shell Size - Insert | 11 |
| Shell Size - Insert | 11 |
| Shielding | Unshielded |
| Thread Diameter | 15 mm |
| Thread Pitch | 1 mm |
| Type | Banding, Backshell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
