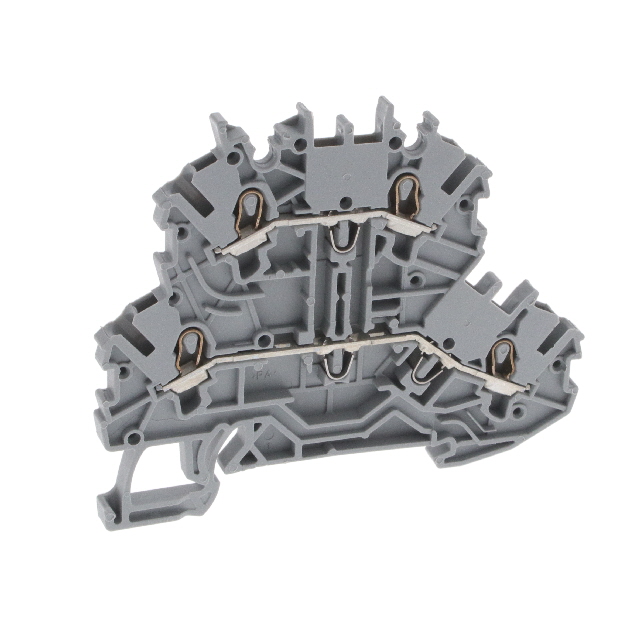

2000-2201

Active

WAGO Corporation

DOUBLE-DECK TERMINAL BLOCK; THRO

Search across all available documentation for this part.

Active

WAGO Corporation

DOUBLE-DECK TERMINAL BLOCK; THRO

Technical Specifications

Parameters and characteristics for this part

DOUBLE-DECK TERMINAL BLOCK; THRO

Part	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Current - IEC	Voltage - IEC	Material - Insulation	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Stripping Length [Min]	Stripping Length [Max]	Terminal - Width [y]	Number of Levels	Voltage - UL [custom]	Type	Termination Style	Number of Positions	Color
WAGO Corporation 2000-2201	0.5 mm²	1.5 mm²	16 A	500 V	Polyamide (PA66), Nylon 6/6	16 AWG	20 AWG	9 mm	11 mm	3.5 mm	2	300 V	Feed Through	Push In, Spring	4	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 4 Position Feed Through Gray 16-20 AWG
