Description
General part information
1CX12-22-0S-004.0

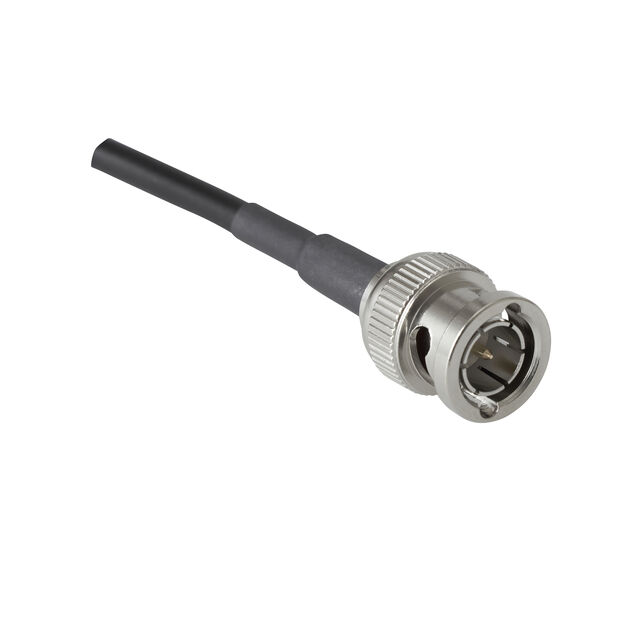

Cable Assembly Coaxial BNC to BNC 4.2mm OD Coaxial Cable 157.5" (4.0m) 13.1'
Technical Specifications
Parameters and characteristics for this part
| Specification | 1CX12-22-0S-004.0 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Outer Diameter | 4.2 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 4.2mm OD Coaxial Cable |
| Cable Type Size | 4.2 |
| Color | Black |
| Length | 157.5 in |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Style | BNC |
