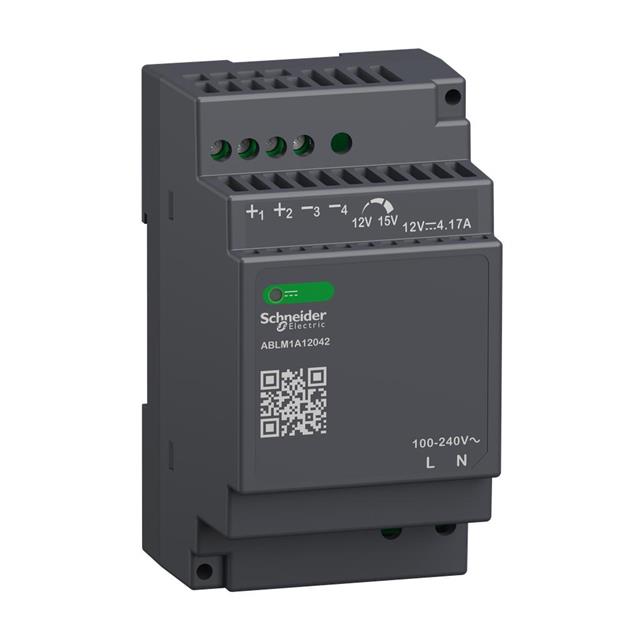

ABLM1A12042
ActiveSCHNEIDER ELECTRIC
AC/DC DIN RAIL SUPPLY 12V 50W
ABLM1A12042
ActiveSCHNEIDER ELECTRIC
AC/DC DIN RAIL SUPPLY 12V 50W
Description
General part information
ABLM1A12042
AC/DC DIN RAIL SUPPLY 12V 50W
Technical Specifications
Parameters and characteristics for this part
| Specification | ABLM1A12042 |
|---|---|
| AC Voltage - Input (Max) | 240 VAC |
| AC Voltage - Input (Min) | 100 VAC |
| Applications | Laboratory, ITE (Commercial) |
| Approval Agency | EN, cUL, EAC, KC, NEC Class 2, CB, UL, CSA, IEC, CE |
| Current - Output (Max) | 4.17 A |
| Efficiency | 88 % |
| Features | Universal Input, IP20 |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 50 W |
| Size / Dimension Height | 3.58 in |
| Size / Dimension Length | 2.19 in |
| Size / Dimension Width | 2.09 in |
| Standard Number | 61010-1, 62368-1, 60950-1 |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 12 V |
