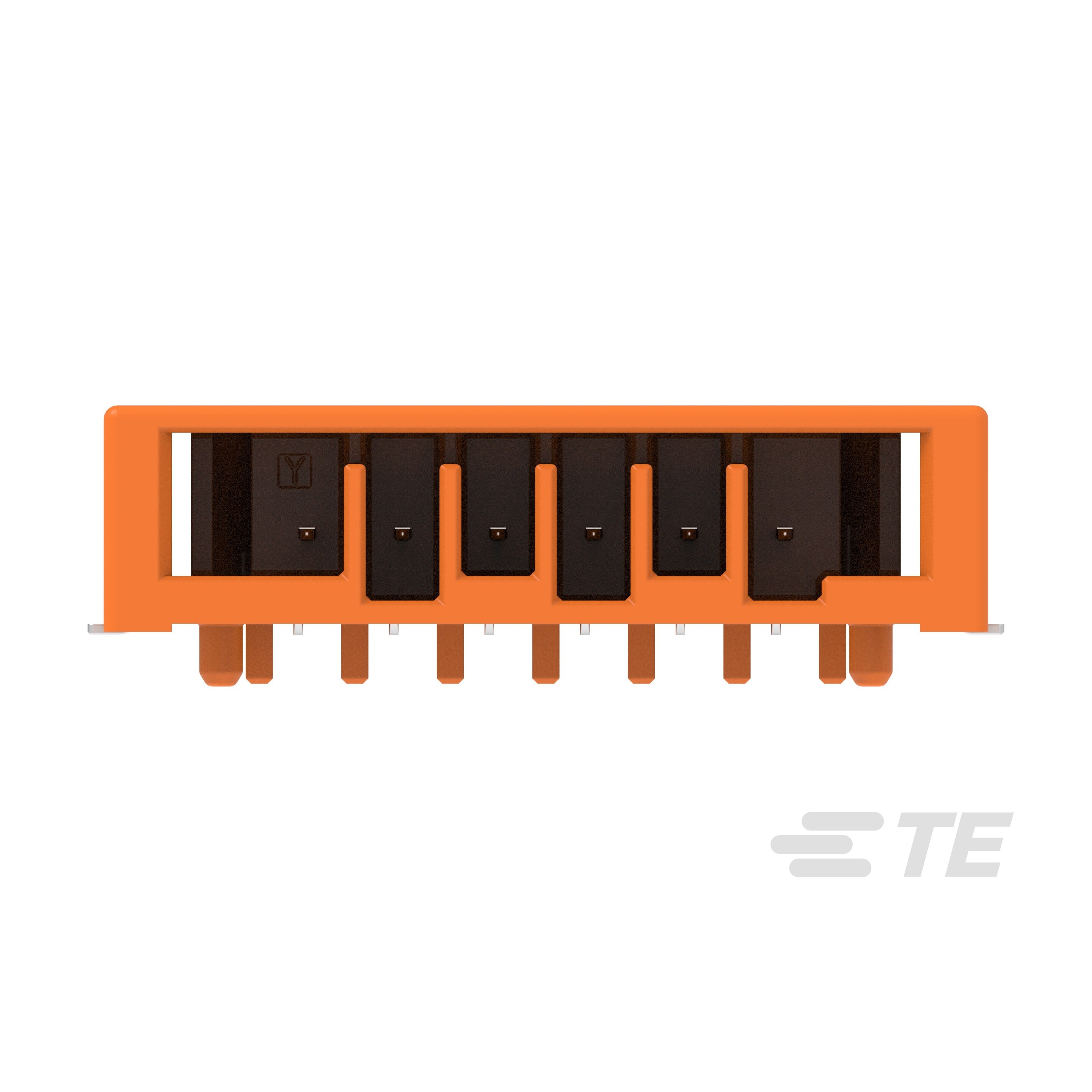

2-2464043-6
ActiveTE Connectivity AMP Connectors
DYNAMIC HV10 HDR ASSY. H-TYPE 6P
2-2464043-6
ActiveTE Connectivity AMP Connectors
DYNAMIC HV10 HDR ASSY. H-TYPE 6P
Description
General part information
2-2464043-6
DYNAMIC HV10 HDR ASSY. H-TYPE 6P
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2464043-6 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 78.7 Ąin |
| Contact Length - Mating | 0.256 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3 A |
| Fastening Type | Push-Pull |
| Features | Board Guide, Solder Retention |
| Insulation Color | Orange |
| Insulation Height | 0.327 in |
| Insulation Material | Polyester, Thermoplastic, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.138 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
